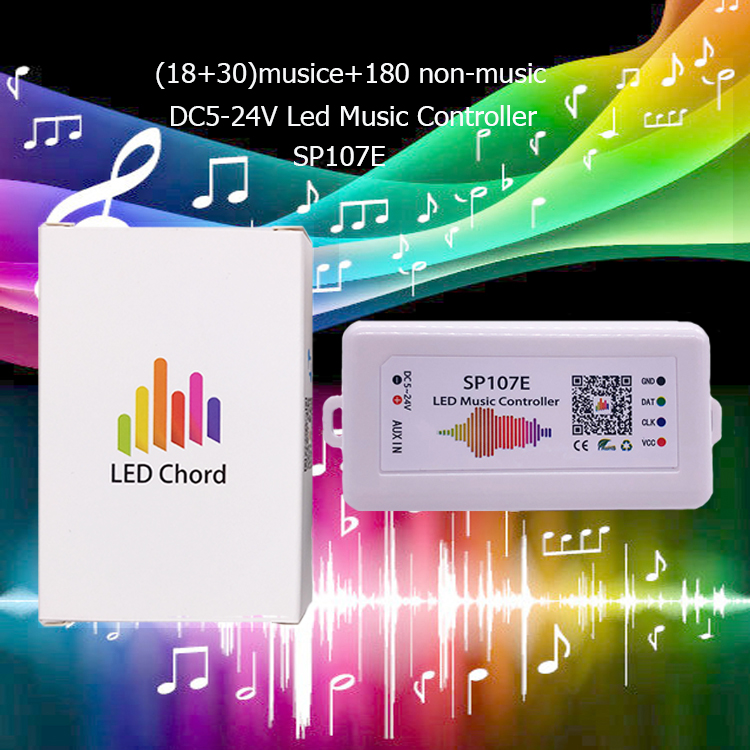

DC5V~24V LED Pixel Controller Led Light Dimmer Bluetooth Music Controller SP107E DC5V~24V LED Pixel Controller

   1. Features:

1. Long distance APP remote control via Bluetooth;
2. Support almost every kind of one-wire or two-wires LED driver IC ;
3. Support setting pixel number and segment number, support up to 960 pixels;
4. With 18 kinds of LED strip music effects, 30 kinds of LED matrix music effects
and 180 kinds of non-music effects;
5. DC5V~24V wide range working voltage, reverse power supply input protection;
6. User setting saving;

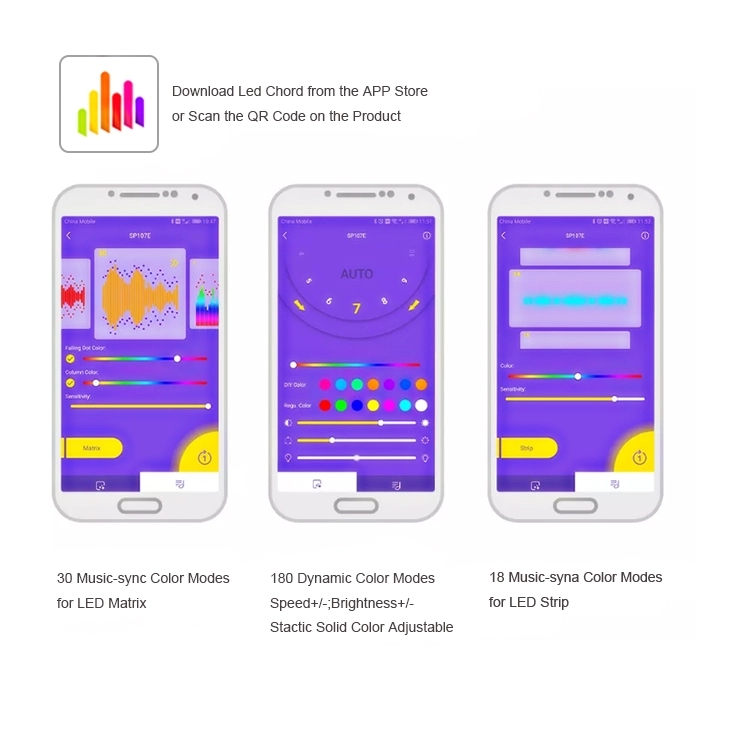

2. App control:

Both IOS version and Android OS version are available. (hardware should support Bluetooth)

•Requires IOS version 10.0 or later;

•Requires Android OS version 4.4 or later;

•Search”LedShop” in App Store or Google pay or scan this QR code to download and install the App:

3. Instructions:

APP Operations:
1. Make sure you have turned on Bluetooth on your phone;
2. Open the APP, drag to refresh the device list, select device name “SP107E” to connect the controller, once connected you will able to rename your controller;
3. Select RGB order and IC type;
4. Adjust the pixel number;
5.Press ENTER.
Audio Input:
There are two ways to input the audio signal on SP107E, AUX IN, and Build-IN microphone;
•AUX IN: Plug the supplied audio split cable into the “AUX IN” jack, connect the audio output source(MP3, Phone or tablet…)and the speaker(or headset), the controller will automatically switch into AUX input mode;
•MIC: Disconnect the audio cable, the controller will automatically switch into microphone input mode.

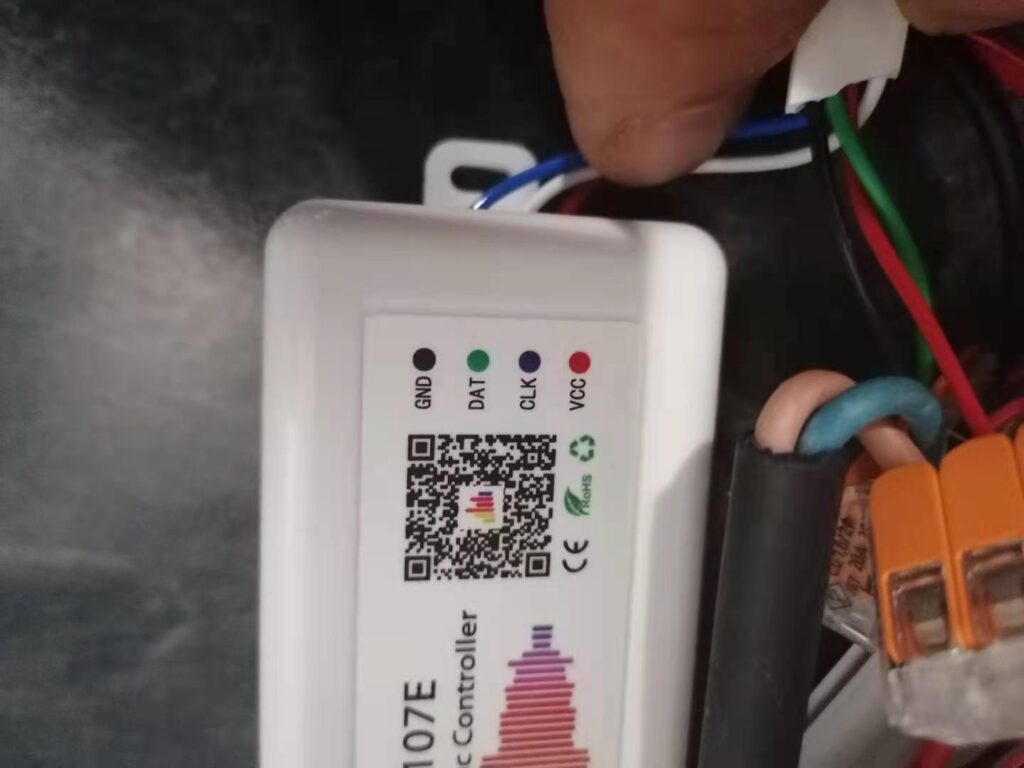

4. Wire Connection:

take noted the sp107e led music controller work with dmx512 led strip

just need to connect Date and clock only,same as follow

Video show

https://www.youtube.com/watch?v=Eu__CB2AG5Y
