Working voltage: DC5V /Dc12V optional
Working current: 60ma
Working consumption: 0.3W
Working temperature: 40°C- 60
IP grade: IP67
LED type: 1pcs F8 RGB led
LED qty: 1pcs
Viewing angle: >120
ICt Type: ws2811 TM1914 dmx512 ,ect optional

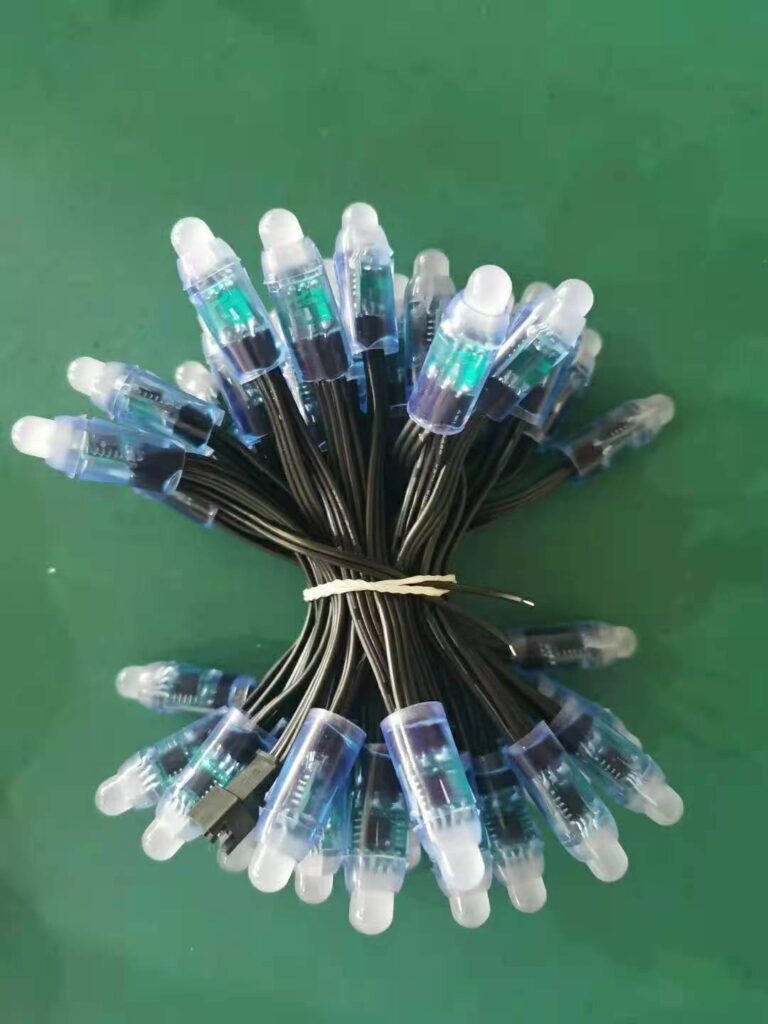

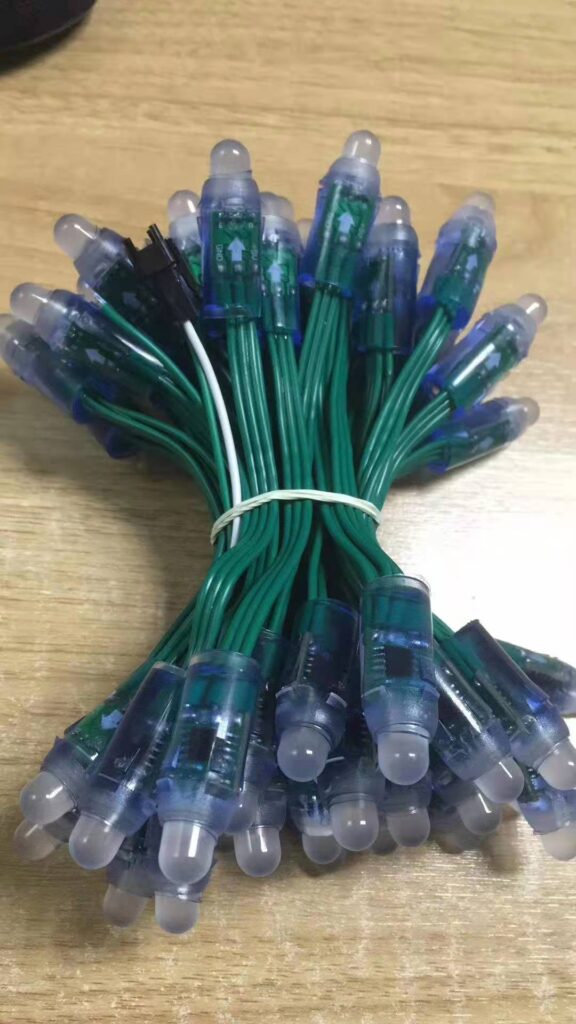

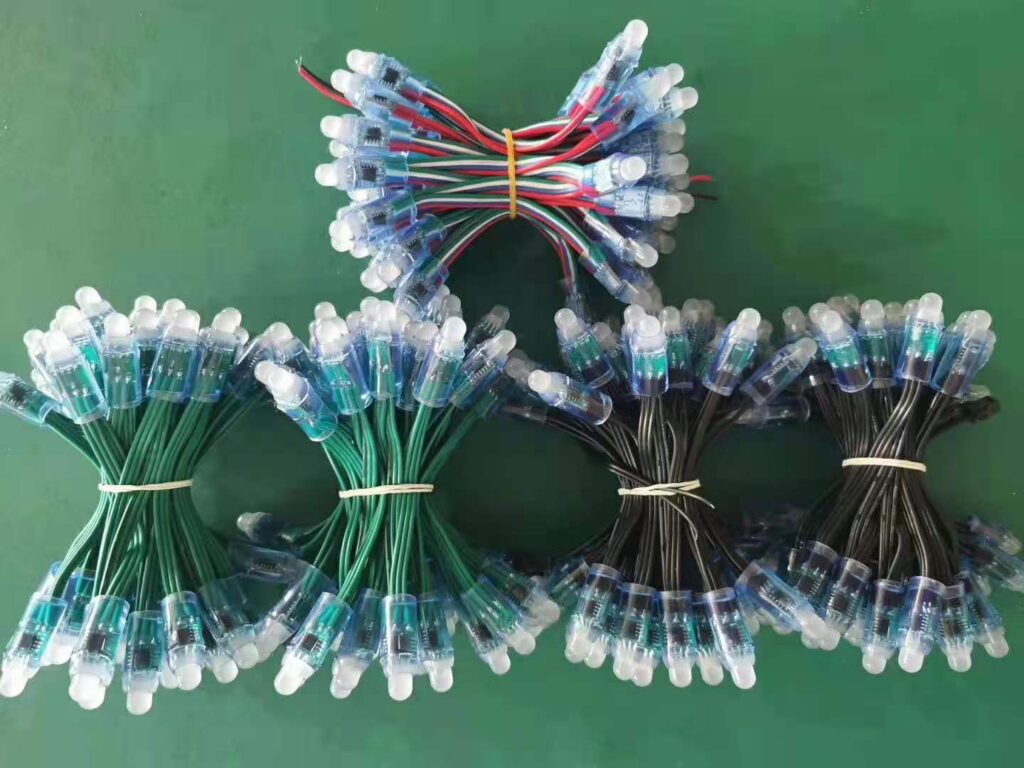

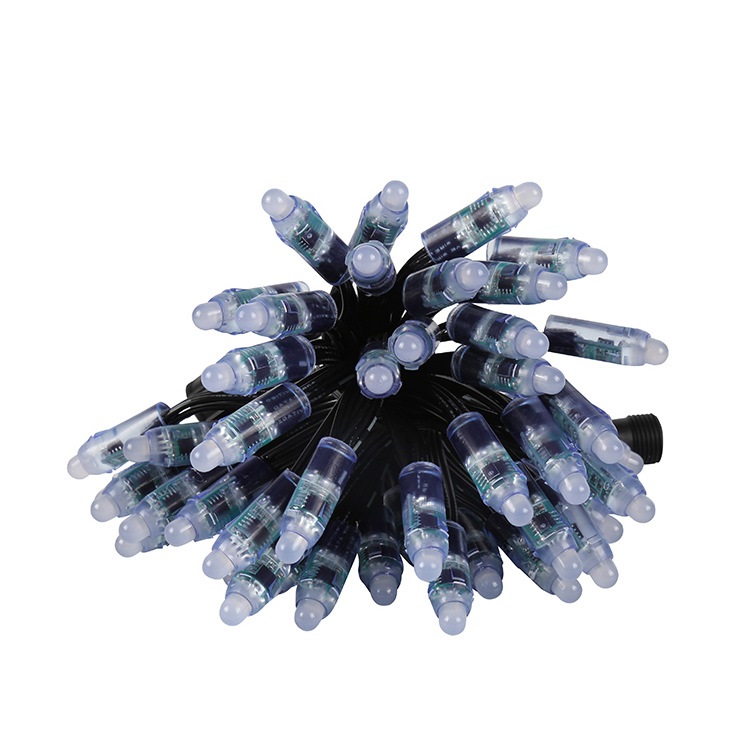

RGB Pixels are digitally-controllable lights you can set to any color, or animate

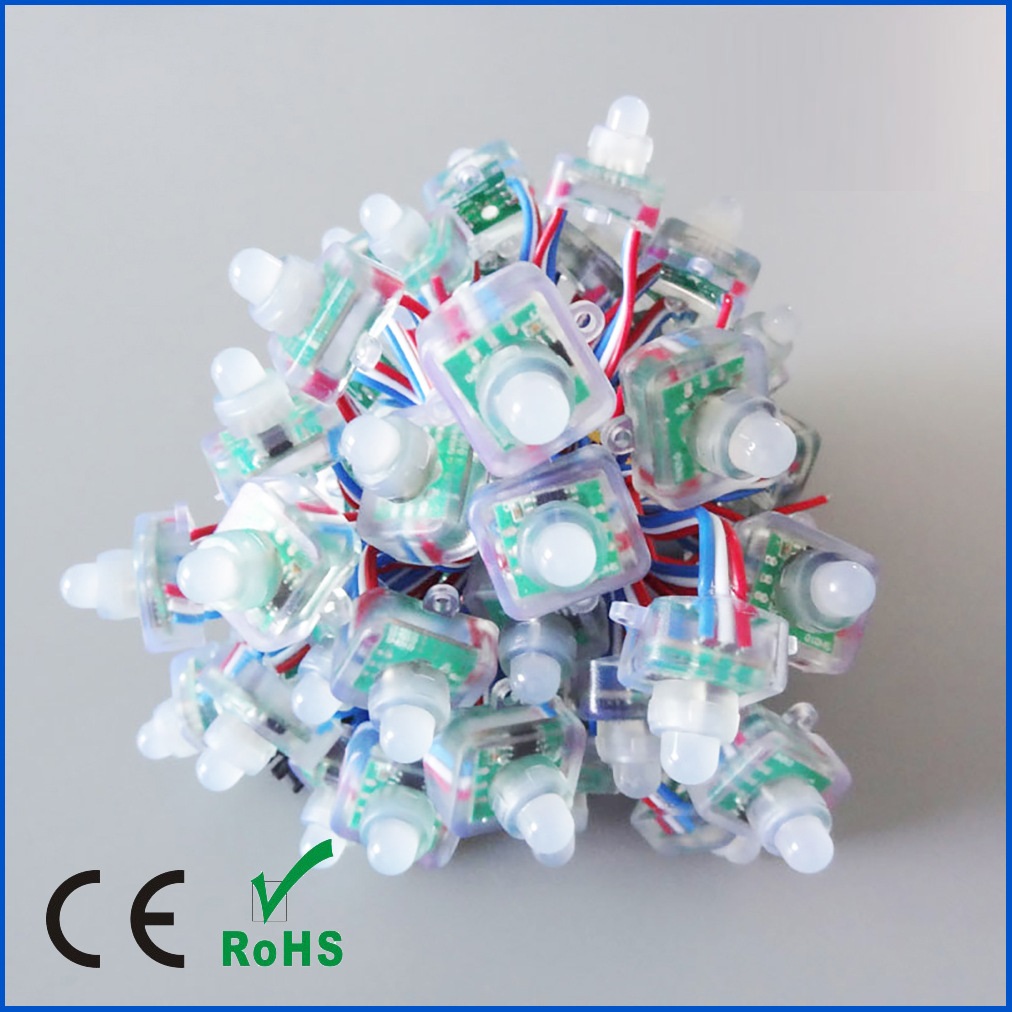

Each RGB LED and controller chip is molded into a 'dot' of silicone.
The dots are waterproof and rugged.
There are four flanges molded in so that you can 'push' them
into a 12mm drill hole in any material up to 1.5mm/0.06" thick
They are typically used to make outdoor signs. Compared to our other 20mm LED dots
these are diffused 8mm LEDs so they are not as bright but they color mix a little nicer.

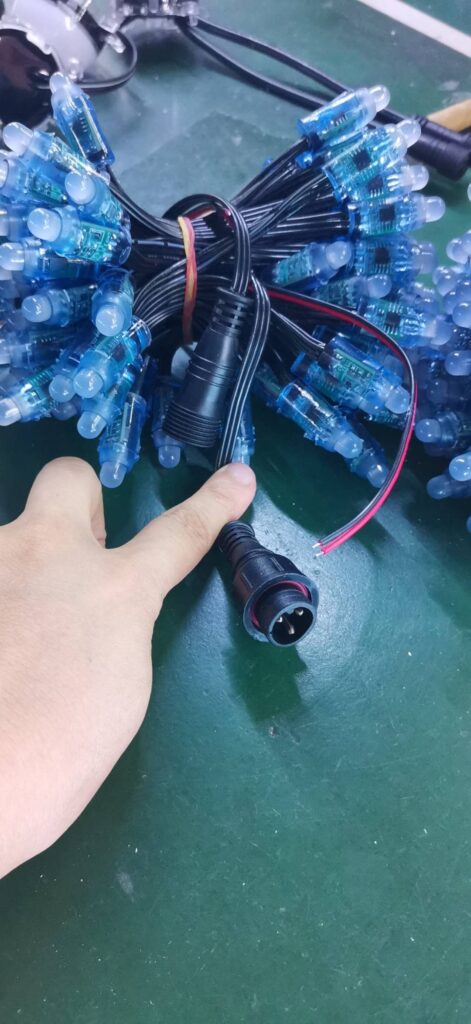

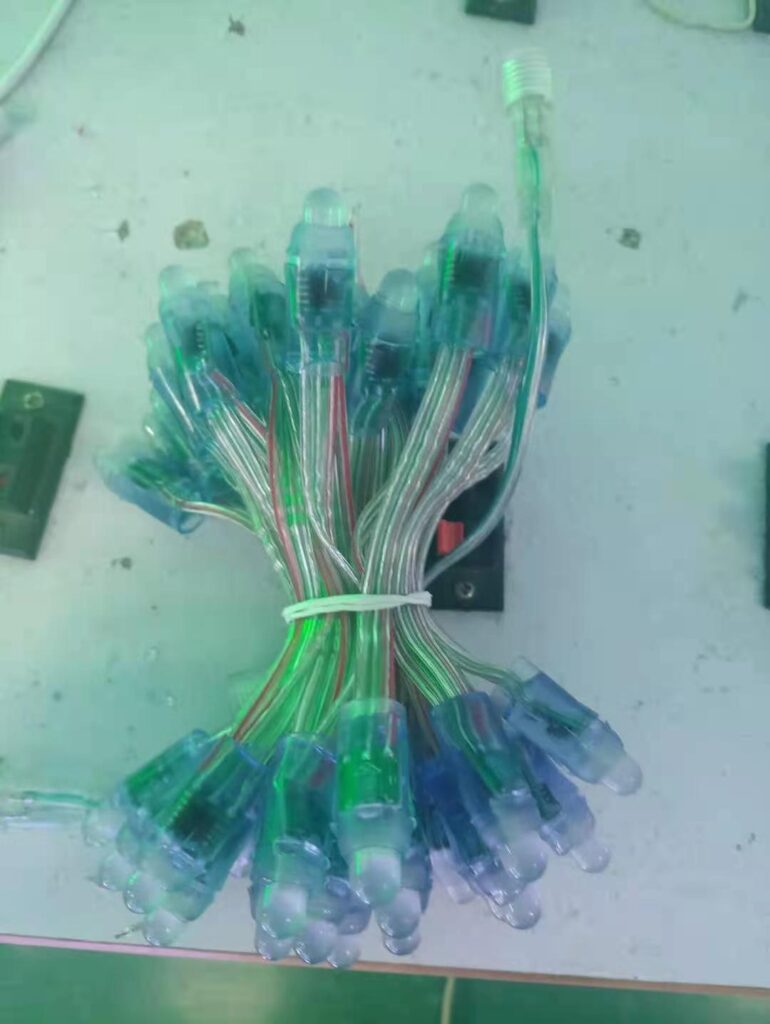

The pixels are connected by a 3-conductor cable. Red is +5V, Yellow is Ground, Green is Data and
Data is shifted down from one pixel to the next so that you can easily
cut the strand or attach more onto the end.
Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15-bit color for 32,768 different shades). The pixels must be clocked by a microcontroller
The pixels use 8mm diffused RGB LEDs
with brightness of about 300 mcd per individual r/g/b LED.
Programable by Software
Conformal Coating,PVC glue protection
IP68, Water-proof protection

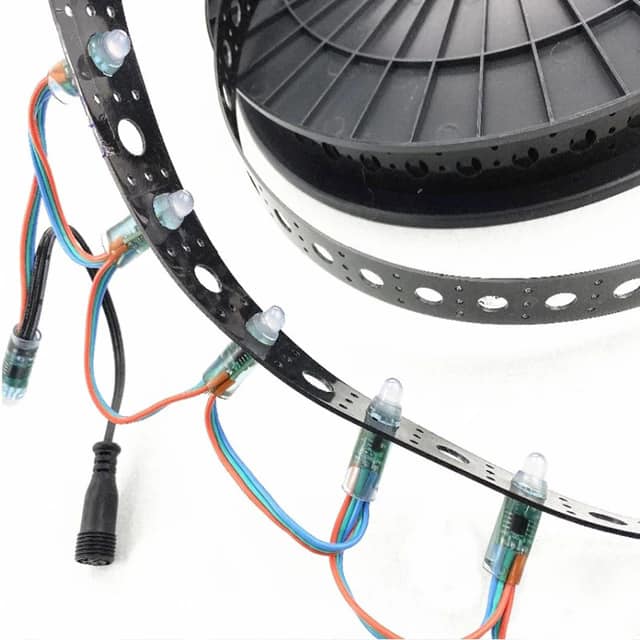

Easy installation (punching 12mm hole on metal panel)

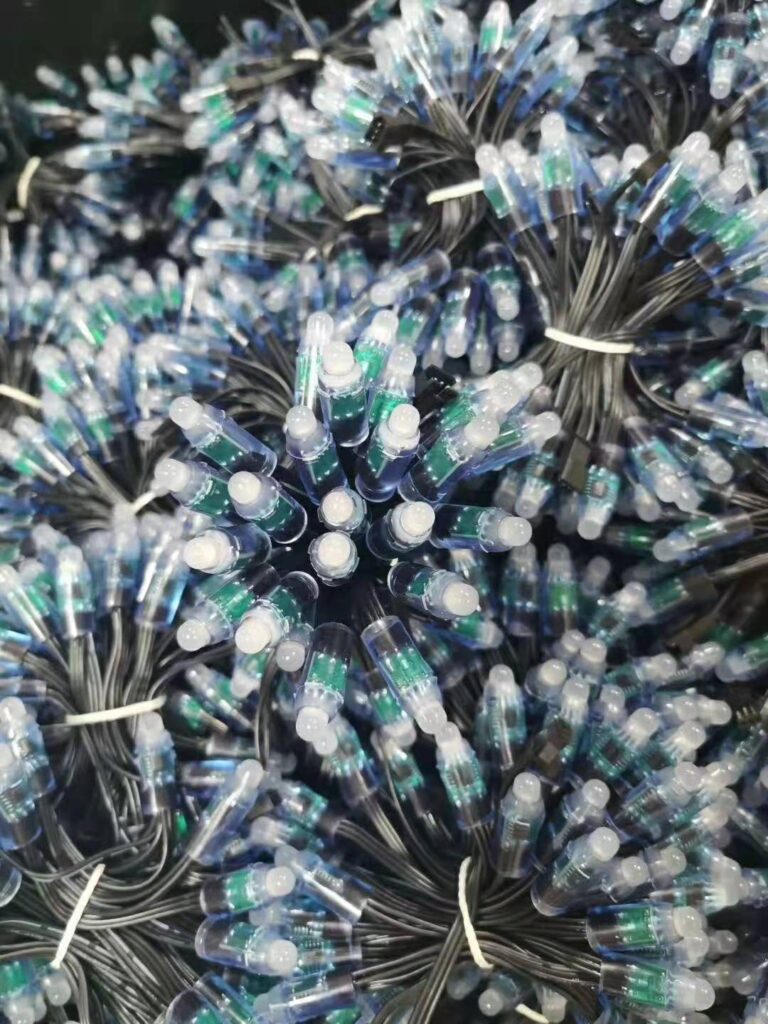

100pcs per set
Meets the general lighting
environment such as:

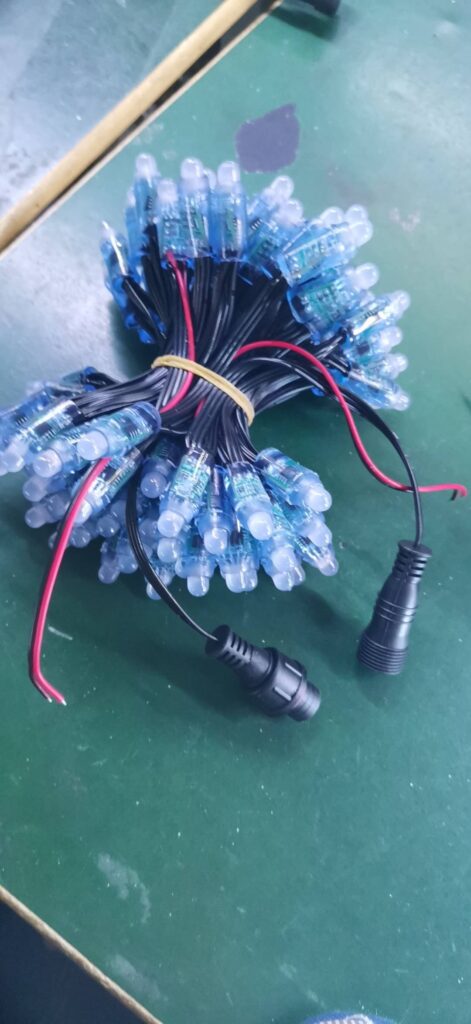

take noted the new 12v 12mm pixel led can support 150pcs per string with one power input is okay
