( two pcs led stirp inside the silicone tube to make 360 viewing,below is the specification for the 8mm width pixel led strip )
customized 22mm led tube
Specification
Catalog | 360viewing 22mm dimater flex silicone neon 2835 rgb pixel led tube 20pixels 120led/m |
---|---|
Model | RL-STR-ws2811/1934-2835RGB-120-20P-24v-D22 |
LED Type | 2835 rgb |
Warranty | 3 years |
Working Voltage | DC24V |
Power | 20W/M(max) |
FPCB Width | 8mm |
Lamp Chip Brand | sanan |
LED Quantity | 120leds/M |
Cutting Unit | every 6LED can be cut as a individual part |
Brightness for each 3535 led | 2100MCD |
Lamp Quality | Pure copper base and gold wire |
IC Type | lb1934 ( 20Pixels per meter) |
360 beam viewing | two led strip inside the 22mm dimater silicone tube ( back to back) |
Color | RGB addressable |
waterproof Grade | IP65 waterproof |
Diamater | 22mm |
Below is our 360viewing 22mm silicone neon tube

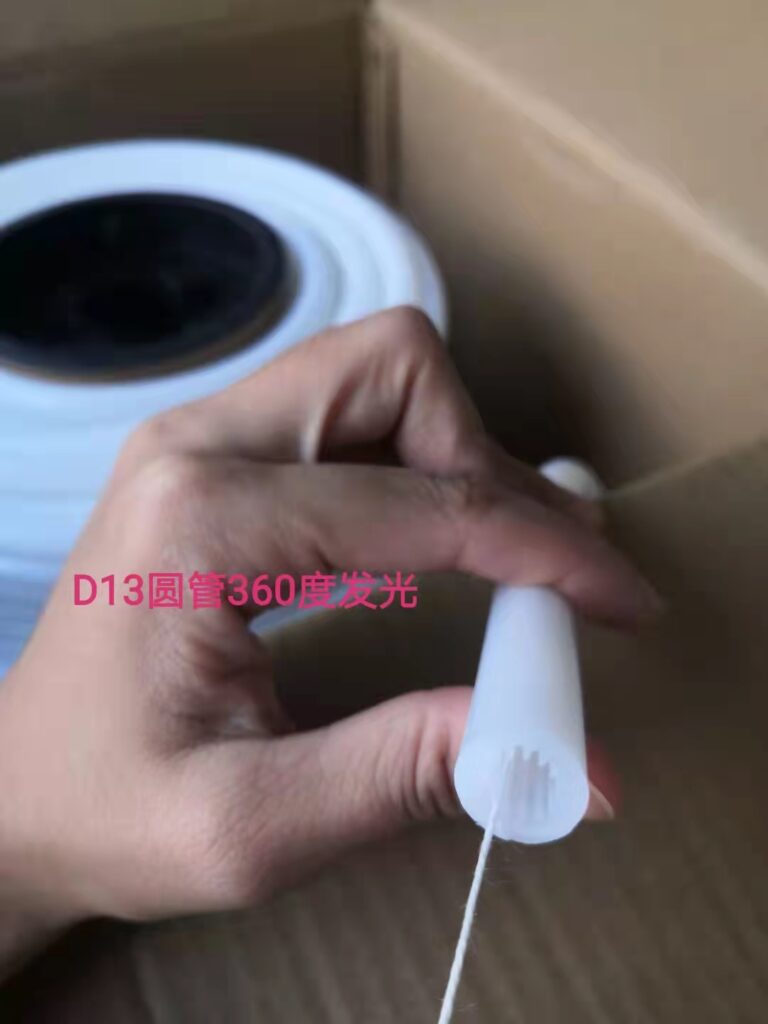

Below one is 13mm dimater size--which can allow the 8mm width led strip also.
( two pcs led stirp inside the silicone tube to make 360 viewing,
below is the specification for the 8mm width pixel led strip )
RL-STR-LB1934A-2835RGB-120-20P-24V-8mm.pdf
There is 8mm width pixel led strip inside

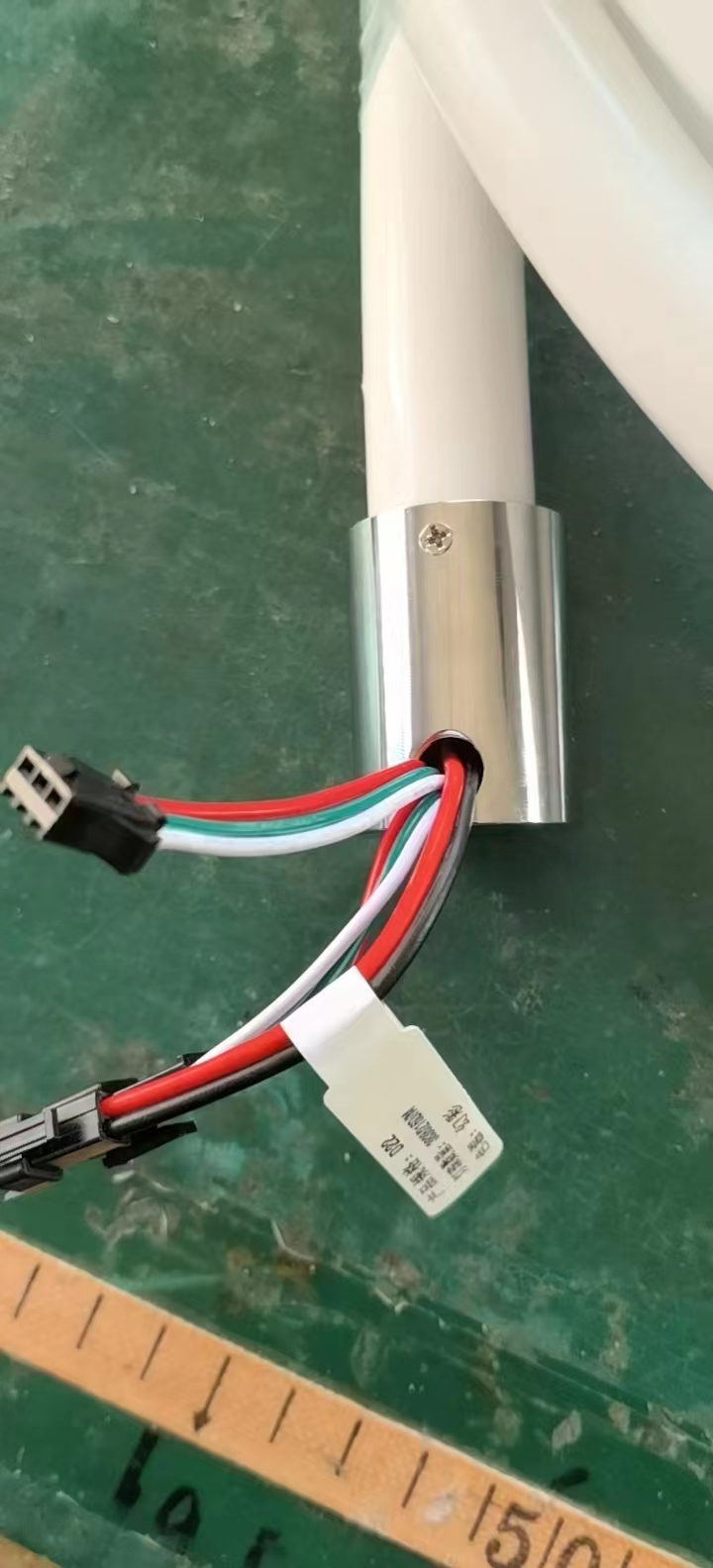

led accessores of the 22mm led tube --can make monochrome color or RGB color or others if you have order
22mm neon flex led tube accessories price list.xlsx
Advantage of silicone flex led tube
1. there is no dark area and No light spot for all type of flex silicone Neon LED tube series,
2. it can be folded and bent without problem.
3. Easy to be installed and transported .
4. applied well in all kinds of High-end venue and outdoor use (Ip rate: 67)
5. take the advantage of unique optical technique and special housing design ,
it increases the intensity and uniformity of light greatly ,anti UV silicone coating ,
no color change outside within 3 years warranty
6. all series belong to low voltage flex led strip,voltage varies from DC5V-DC24v,
can be cut at 1led,3led,6leds to make a individual part.
7. various designed end caps for different project
8. Packing : Static bag seal packing(locking static bag + moisture-proof desiccant)
9. 5m/reel(length can be customized as the customer requirements)
