360 viewing 40mm diamater addressable RGB flex neon led tube 2pcs 20pixels 60led led strip inside per meter

360 viewing 3D digital full color flex silicone Neon RGB LED with 40mm diamater
Products Inquiry

Product Details

360 viewing 40mm diamater addressable RGB  flex neon led tube  2pcs 20pixels 60led led strip inside per meter

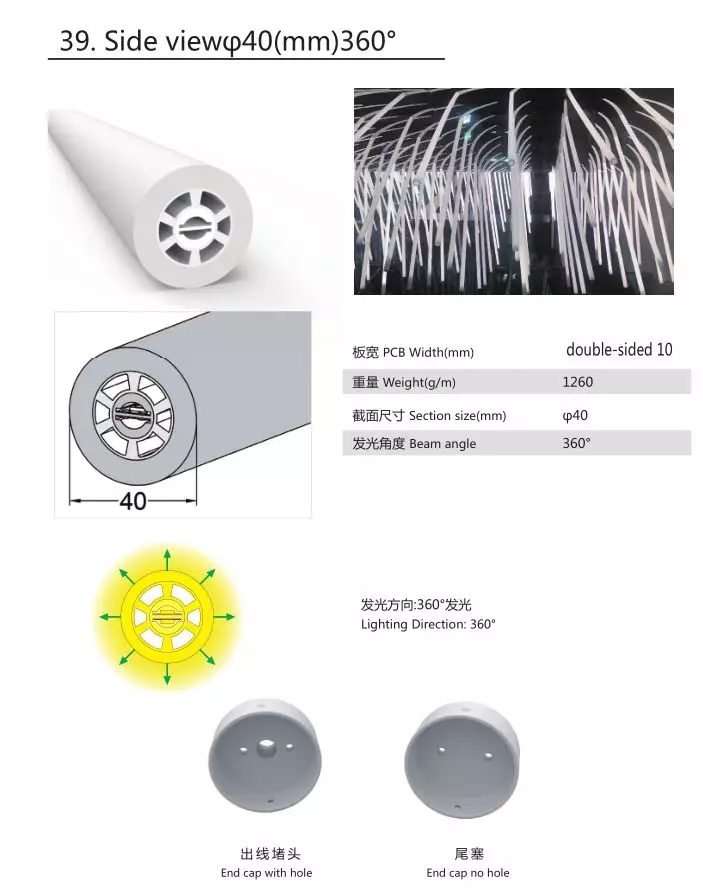

Specifcation of the pixel led stirip inside the 3D silicone neon tube

ItemRL-Neon-ws2811-5050RGB-60-12VLED TypeSMD 5050RGB
IC  Typews2811Working voltage12V
Power14W/Minner PCB width10MM
Lamp chip brandsananLED quantity120leds/M(each side 60LEDs)
IC  (Pixels /m)20pcs Pixels/M
Beam angle360 viewingwarranty2years
Circuit Board2unce PCB board with with double cooper layercontrolSPI control
colorRGB addressable                                 Control system: SPI /TTL led controller ;
IP RateSilicone coating waterproof--IP67diamater(unit:mm)40mm

advantages:

  • This is food grade silicone material ,Anti-yellowing and heat-resisting silicon glue, chemical resistance acid, and alkaline, available for the extremely terrible outdoor environment.

  •  Excellent flexibility to shape optionally.

  •  Uniform and soft luminance, no light spot.

  •  Super brightness large chip, golden wire welded and copper led holder for quicker heat dissipation, higher stability, longer life span.

  •  Leadless SMT technique(RoHS certificated), smooth welding joint, firm connection of led, and PCB. Product link:

  • The length, power, brightness and CCT ,ect all can be customized at you want;

  • can be folded and bent without problemand Easy to be installed and transported;

  • Applied well in all kinds of High-end venueand outdoor use (Ip rate: 67);

  • take the advantage of unique optical technique and special housing design ,it increases the intensity and uniformity of light greatly ,

  • Warranty: 2 years warranty

  • All Types belong to low voltage flex led strip,voltage varies from DC5V-DC24v,can be cut at 1led,3led,6leds to make a individual part;

  • Enough Mounting accessories and end caps included for project use;

Product details







Youtube video

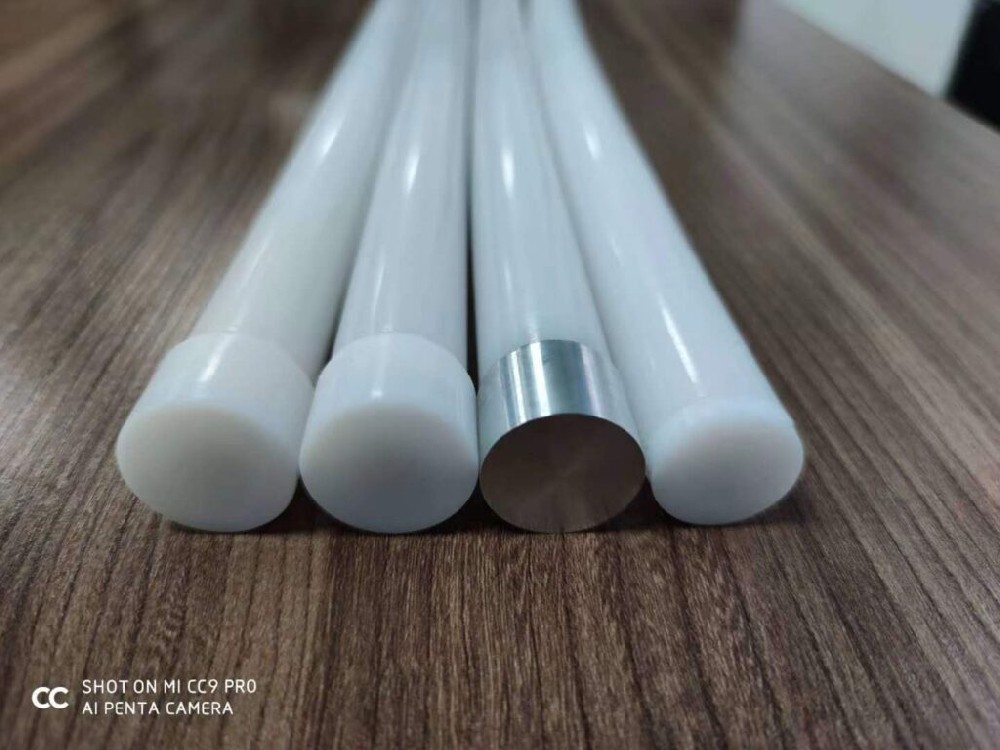

PS: there is 35mm /38mm diamater silicone tube optional if you need to save cost,which is a good Economic choice.




of course -we can make RGB color or RGBW color led strip --put inside the 40mm diamater silicone tube

video show here





take noted  that must make sure the led strip width less than 10mm inside the silicone  tube .

two strip sticked  together back by back to make 360 viewing.



Advantage of silicone Neon  Tube for led strip

1. there is no dark area and No light leakage for digital flex silicone Neon LED tube series,
2. it can be folded and bent without problem.
3. Easy to be installed and transported .
4. applied well in all kinds of High-end venue and outdoor use (Ip rate: 67)
5. take the advantage of unique optical technique and special housing design ,

it increases the intensity and uniformity of light greatly ,anti UV silicone coating ,

no color change outside within 3 years warranty
6. all led strip series belong to low voltage flex led strip,voltage varies from DC5V-DC24v,

can be cut at 1led,3led,6leds to make a individual part.
7. various designed end caps for different project
8. Packing : Static bag seal packing(locking static bag + moisture-proof desiccant)
9. 5m/reel(length can be customized as the customer requirements)

download the detailed catalog for flex neon tube for led strip here please


2023-extruded neon led strip.pdf

2023-silicone neon tube catalog for led strip.pdf

round silicone tube catalog.pdf



Old catalog here
