Specifcation of the pixel led stirip inside the 3D silicone neon tube
| Item | RL-Neon-ws2811-5050RGB-60-12V | LED Type | SMD 5050RGB |
| IC Type | ws2811 | Working voltage | 12V |
| Power | 14W/M | inner PCB width | 10MM |
| Lamp chip brand | sanan | LED quantity | 120leds/M(each side 60LEDs) |
| IC (Pixels /m) | 20pcs Pixels/M | ||
| Beam angle | 360 viewing | warranty | 2years |
| Circuit Board | 2unce PCB board with with double cooper layer | control | SPI control |
| color | RGB addressable Control system: SPI /TTL led controller ; | ||
| IP Rate | Silicone coating waterproof--IP67 | diamater(unit:mm) | 40mm |
advantages:
This is food grade silicone material ,Anti-yellowing and heat-resisting silicon glue, chemical resistance acid, and alkaline, available for the extremely terrible outdoor environment.
Excellent flexibility to shape optionally.
Uniform and soft luminance, no light spot.
Super brightness large chip, golden wire welded and copper led holder for quicker heat dissipation, higher stability, longer life span.
Leadless SMT technique(RoHS certificated), smooth welding joint, firm connection of led, and PCB. Product link:
The length, power, brightness and CCT ,ect all can be customized at you want;
can be folded and bent without problemand Easy to be installed and transported;
Applied well in all kinds of High-end venueand outdoor use (Ip rate: 67);
take the advantage of unique optical technique and special housing design ,it increases the intensity and uniformity of light greatly ,
Warranty: 2 years warranty
All Types belong to low voltage flex led strip,voltage varies from DC5V-DC24v，can be cut at 1led,3led,6leds to make a individual part;
Enough Mounting accessories and end caps included for project use;
Product details
of course -we can make RGB color or RGBW color led strip --put inside the 40mm diamater silicone tube
video show here
take noted that must make sure the led strip width less than 10mm inside the silicone tube .
two strip sticked together back by back to make 360 viewing.
Advantage of silicone Neon Tube for led strip

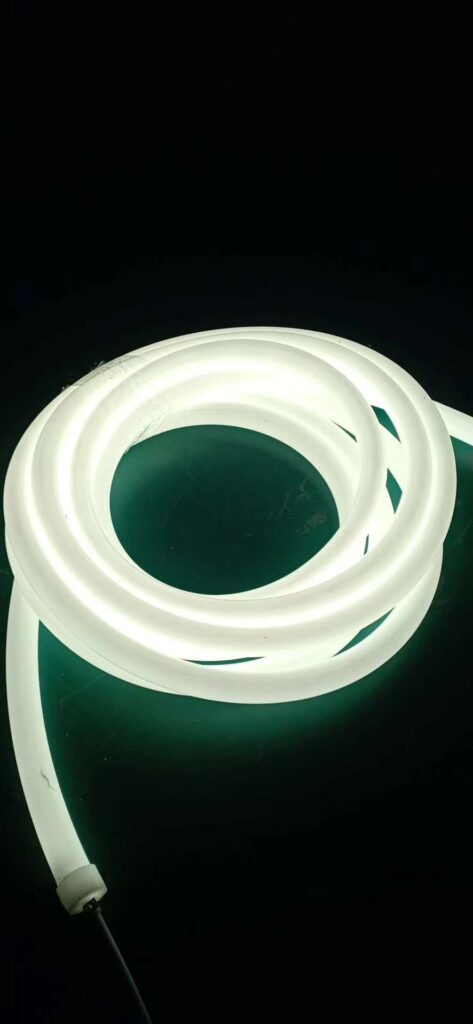

1. there is no dark area and No light leakage for digital flex silicone Neon LED tube series,

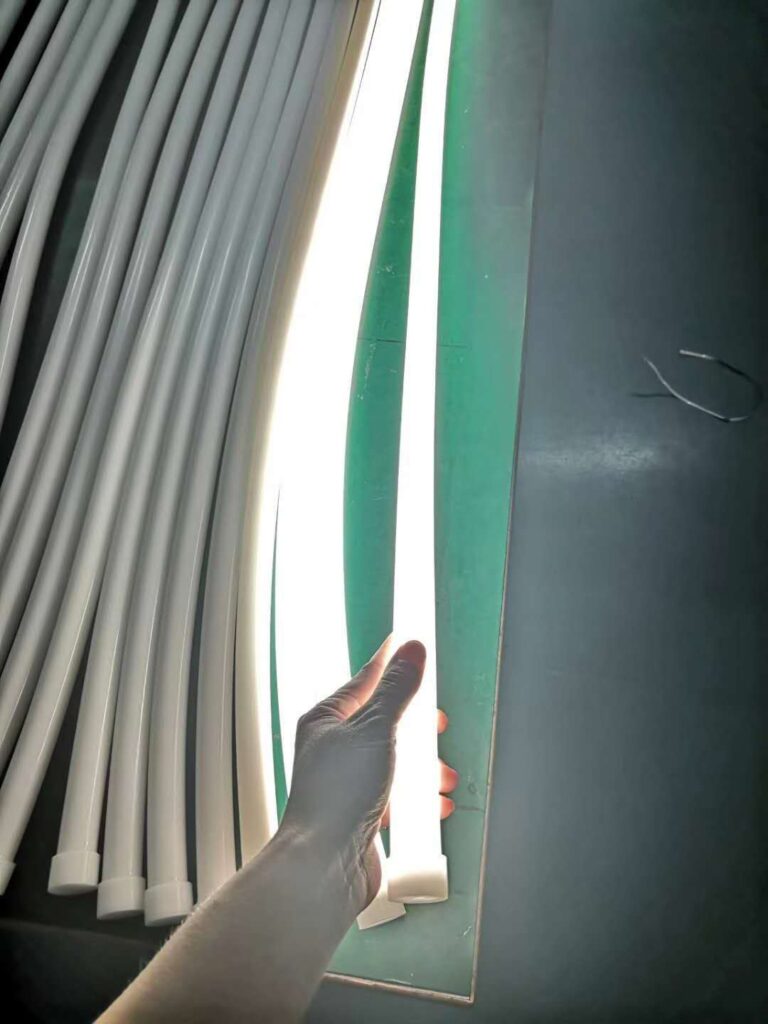

2. it can be folded and bent without problem.
3. Easy to be installed and transported .
4. applied well in all kinds of High-end venue and outdoor use (Ip rate: 67)
5. take the advantage of unique optical technique and special housing design ,
it increases the intensity and uniformity of light greatly ,anti UV silicone coating ,
no color change outside within 3 years warranty
6. all led strip series belong to low voltage flex led strip,voltage varies from DC5V-DC24v，
can be cut at 1led,3led,6leds to make a individual part.

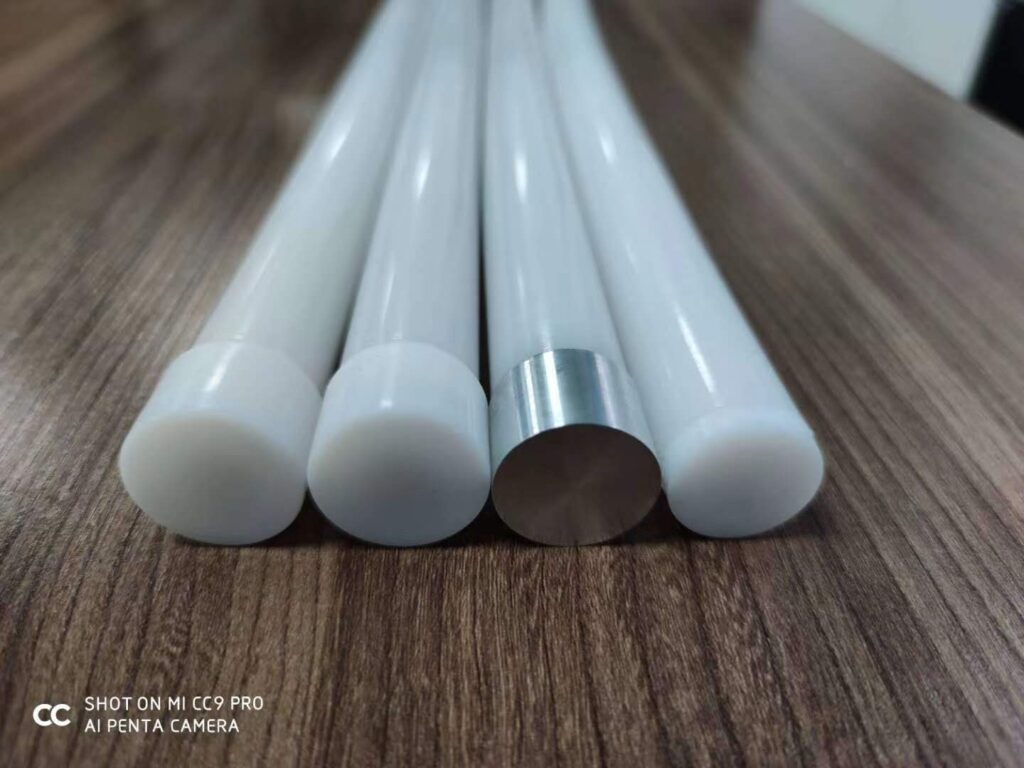

7. various designed end caps for different project
8. Packing : Static bag seal packing(locking static bag + moisture-proof desiccant)
9. 5m/reel(length can be customized as the customer requirements)
download the detailed catalog for flex neon tube for led strip here please
2023-extruded neon led strip.pdf
2023-silicone neon tube catalog for led strip.pdf
round silicone tube catalog.pdf
