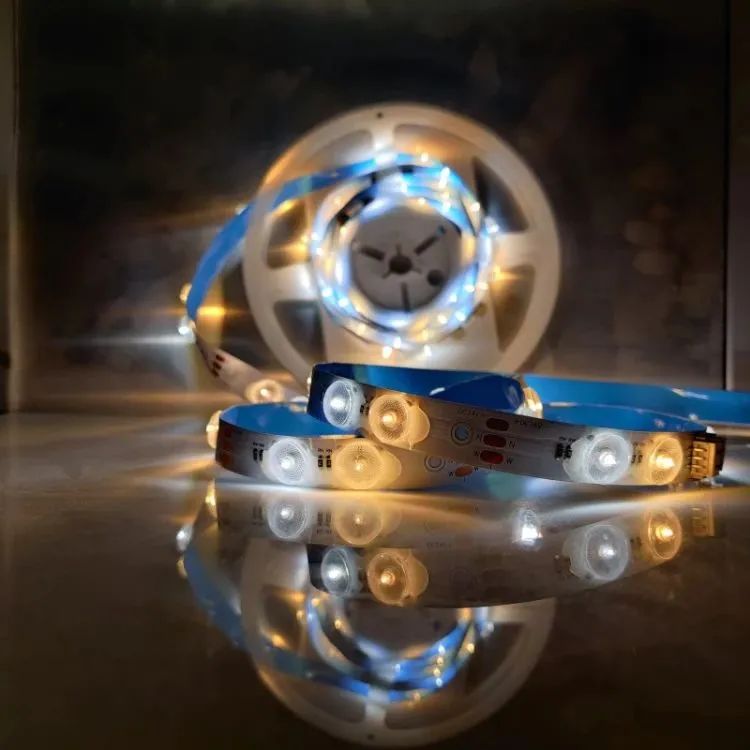

Dc24v Dual white 3030 flexible led wall washer 36led LED per meter with 2led per cutting unit

Dc24v Dual white  3030  flexible led wall washer 36led LED per meter with 2led per cutting unit

below led aluminium profile iwth 10cm width and 3.5cm height

Advantage

Using TPU material, anti-yellowing, high temperature resistance, corrosion resistance, weak acid and alkali resistance, good flexibility;

PU glue potting, strong adhesion, good durability, high reliability;

It can replace the traditional hardware wall washer or LED light bar, with small size, light weight and flexibility;

flexible application and easy installation; a variety of beam angles are available,

采用TPU材质，抗黄变，耐高温抗腐蚀、耐弱酸碱，柔软性好; PU胶灌封，粘接性强、耐久性佳，可靠性高;

可以代替传统的硬体洗墙灯或LED灯条，尺寸小、重量轻、可弯曲；应用灵活，安装简便; 多种束光角可选，

Speciciation

Dc24V  20W/meter with 36pcs LED/meter;

2led as one cut unit.

size: 1000mmX15mmX3mm(LXHXW) 36led/M

Color: 2700K-10000K

warranty: 2 years

CRI>90

Beam angle: 170degree  in stock  (15degree 45 degree 60 degree 10*45 optional)

Installing distance  5cm away from the wall

can light up the wall to  2-3meter long tall

flame retardant grade:UL94-V0  with test report

PCB width:15.5mm，250g per reel(5m/roll)

Parameter

SPI Type optional

dmx512 type optional

RGBW color optional ( No dmx512)
