DC 24V tm1934 8pixels 48leds Digital Pixel LED Strips with dual signal with lens 60led optional

 DC 24V tm1934 8pixels  48leds  Digital Pixel LED Strips with dual signal with lens

How to produce the 1934 led strip with lens please .

DC 12Vtm1934 20pixels  60leds  Digital Pixel LED Strips with dual signal .

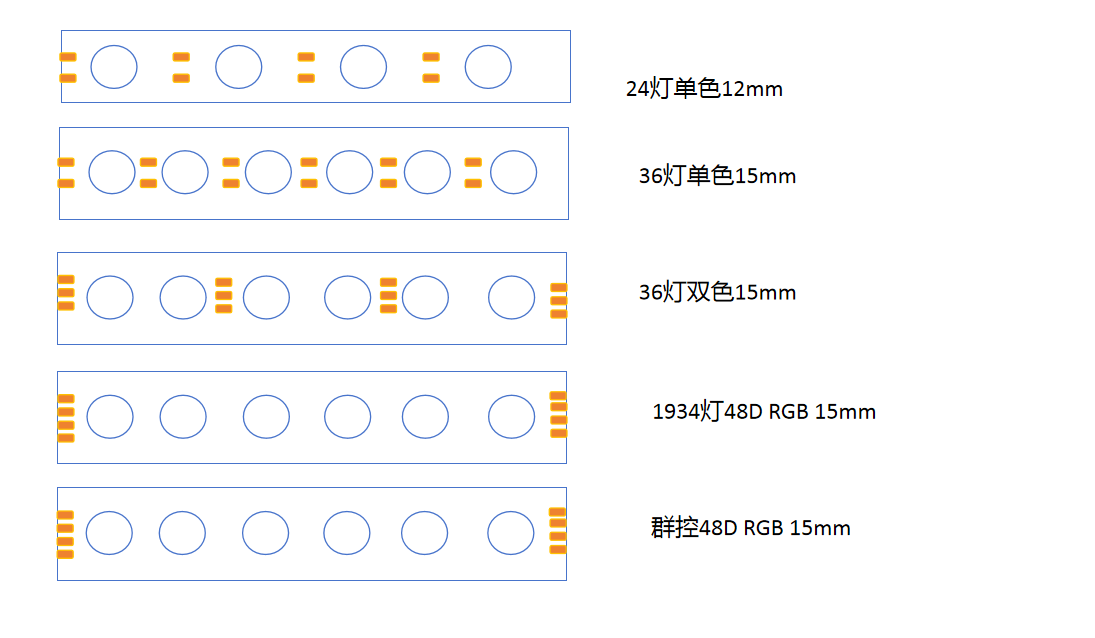

1934 LED strip wiring

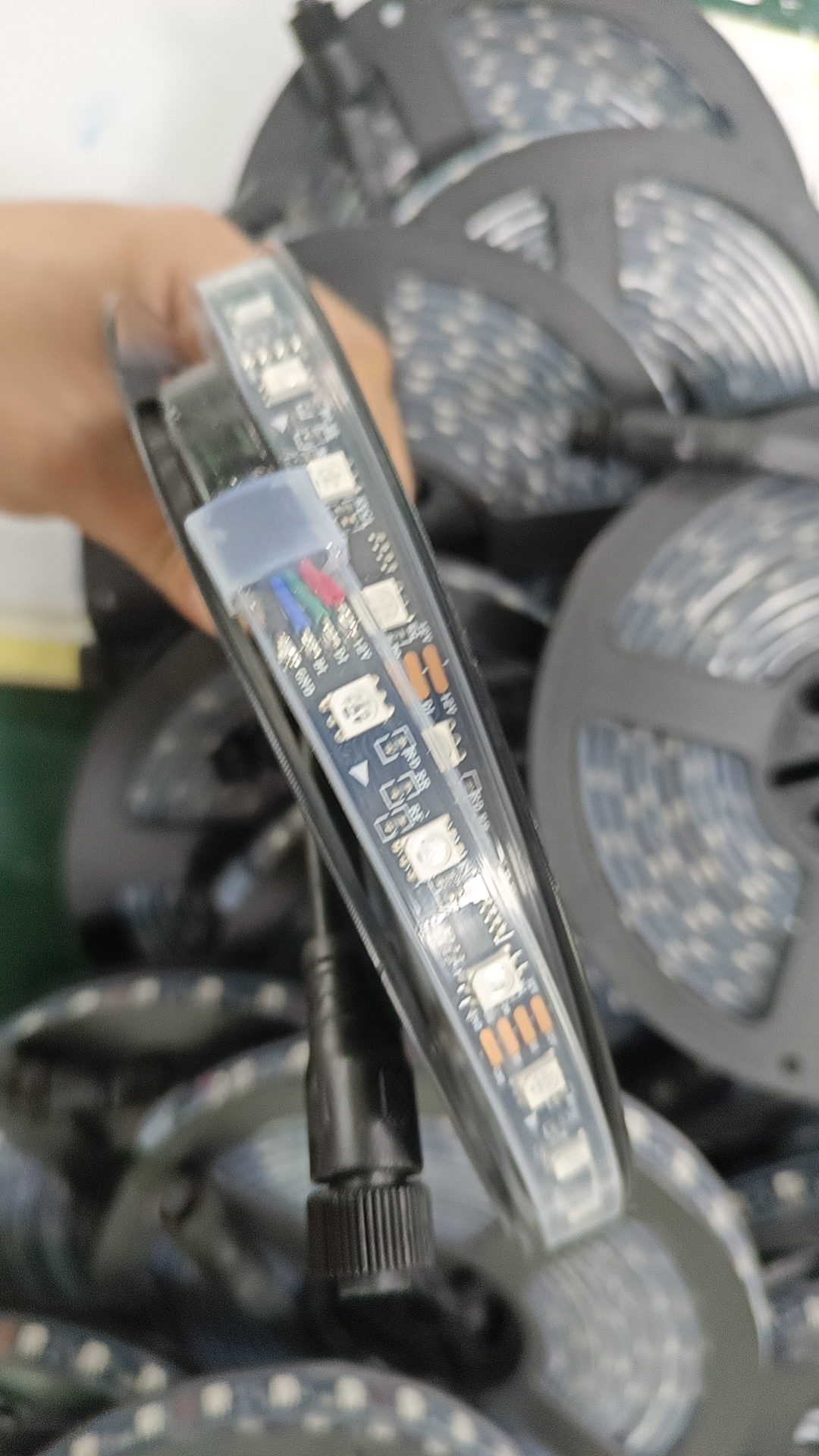

1934led strip with silicon gel coating Ip65

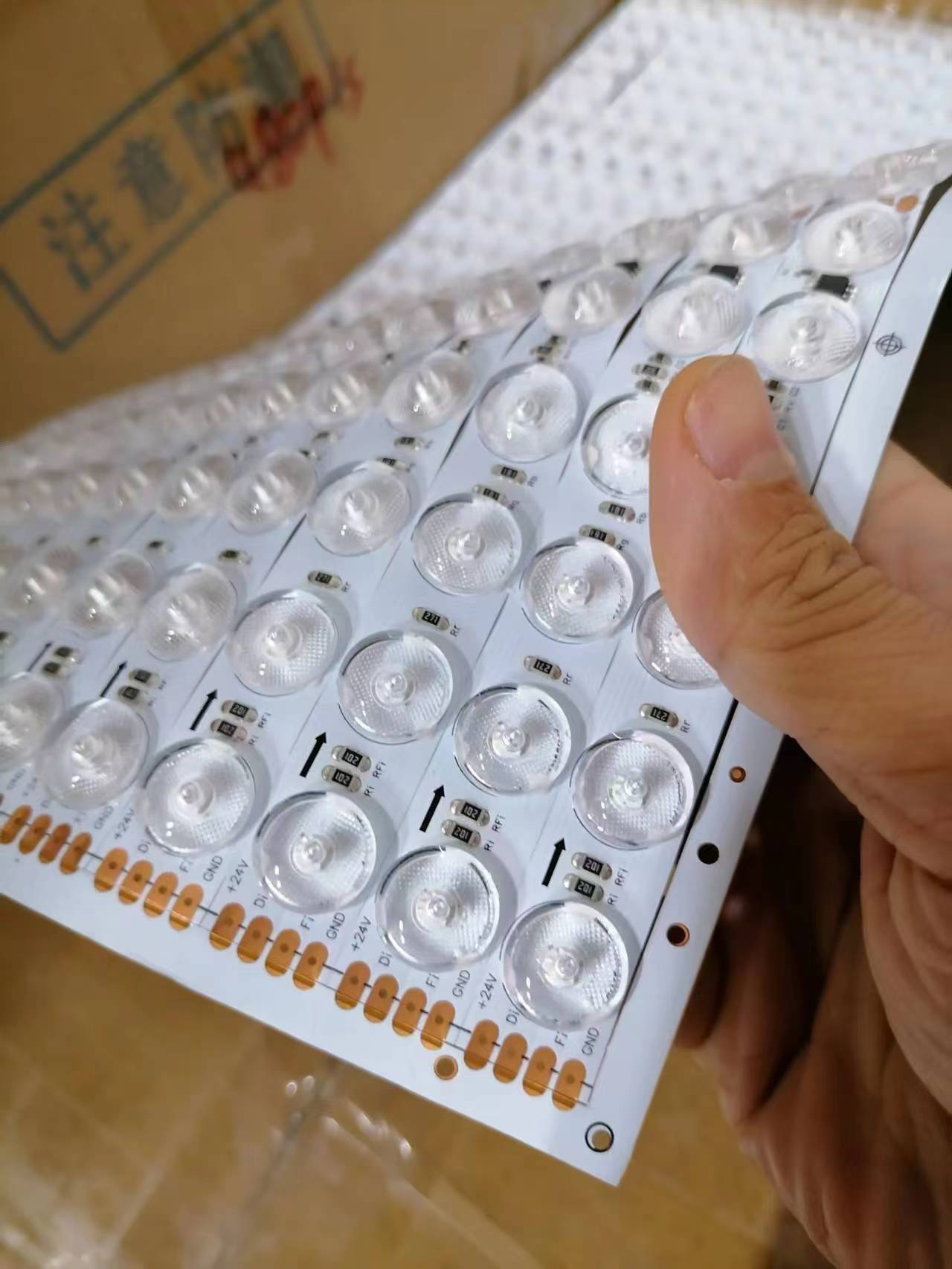

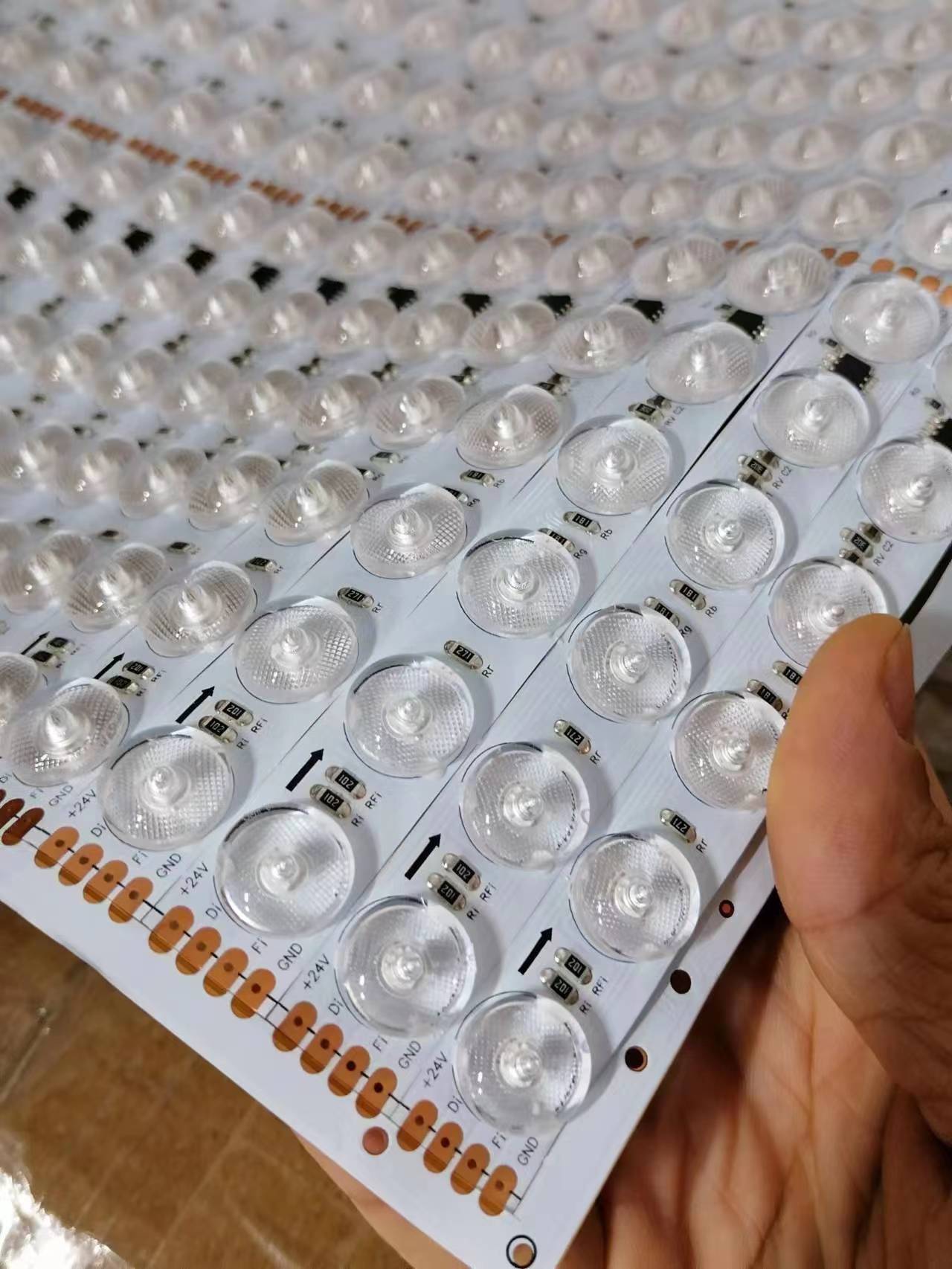

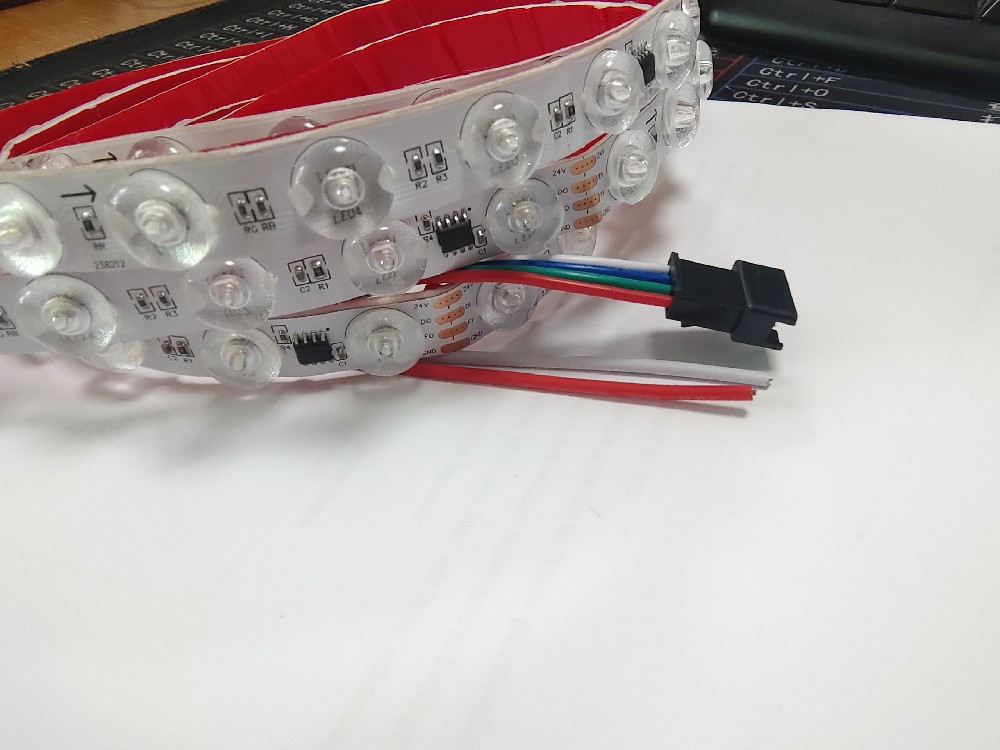

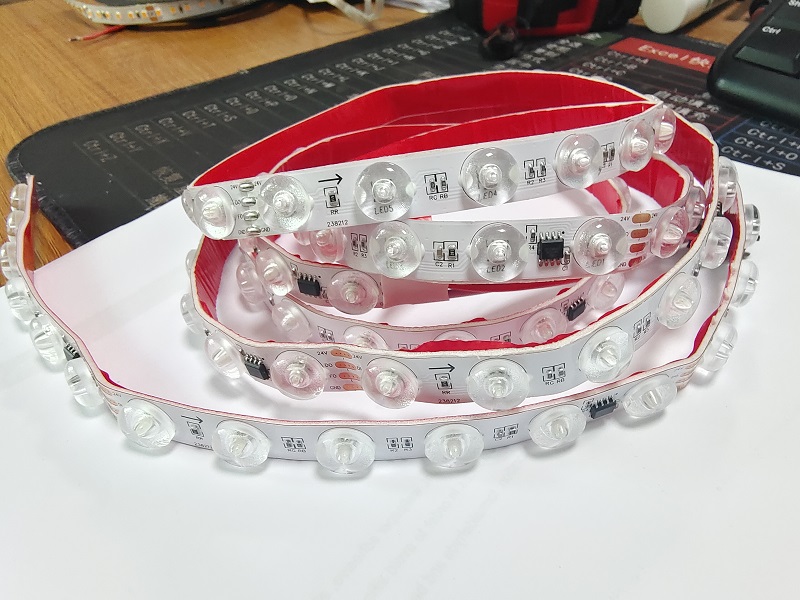

below is 1934 led stirp 24v 60led with lens to make big beam viewing

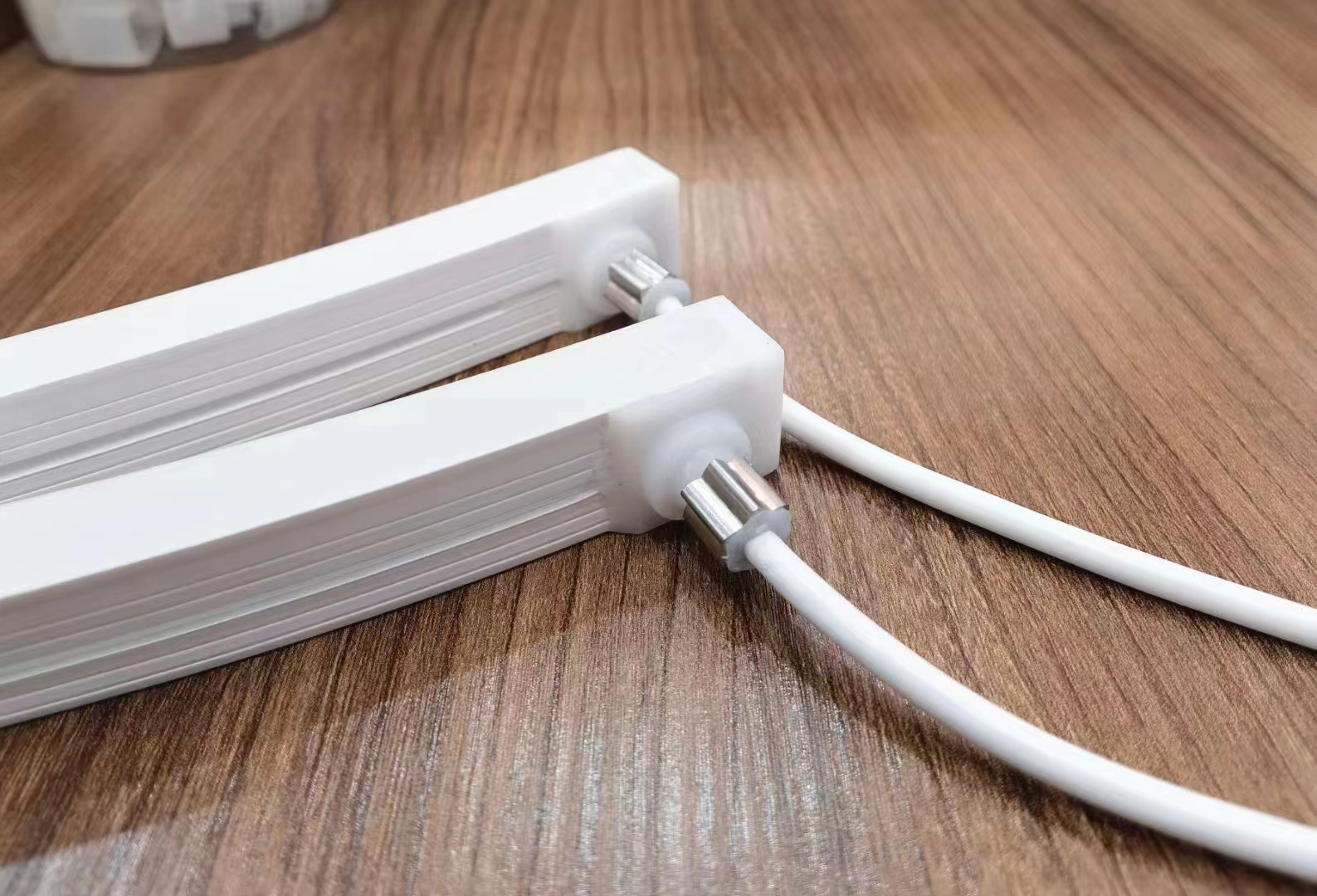

1934led strip with silicone tube with ip67

we can make other color -three white also

Describe:

• Digital DC24V  LED Strip

• Item: RL-STR-tm1934-5050RGB-8P-48-24V

• IC Type:tm1934/lb1934 (same ic )

• Color:Digital RGB

• LED Quantity: 48 or 60 leds per meter

• Size: 5000*12*2.5(mm)/

• View angle:165°

• Working Input Voltage: Dc24v

• Drive Mode:Constant Voltage

• Pixels/M :8pixels  with 24V  ;

Advantages

1.PWM refresh rate: 800kHz, transfer speed 800k bps

2. It comes in 1 meters per reel with 4Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

3. Pure copper bracket and pure gold wire for 5050 RGB led chip

4.2unce PCB board with double cooper layer(hongqi brand 35um copper )

5.doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

6. 60leds and 10pixels per meter  with 24V ,One IC control six leds ,

60leds and 20pixels per meter  with 12V ,One IC control three leds ,

7. 12V low voltage inputted , don’t over 13V , otherwise you will destroy the entire strip .

8. Controller System：SD controller , DMX controller , Artnet and so on .(SPI protocel)

9. Installing : screw+silicon clipand 3M adhesive on back side for sticky

10: dual signal ,one pixel no work ,no affect next one work.

11:Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20

waterproof Type

IP20 :Non-waterproof with 3M sticker on the back, Size:5000*12*1.5mm

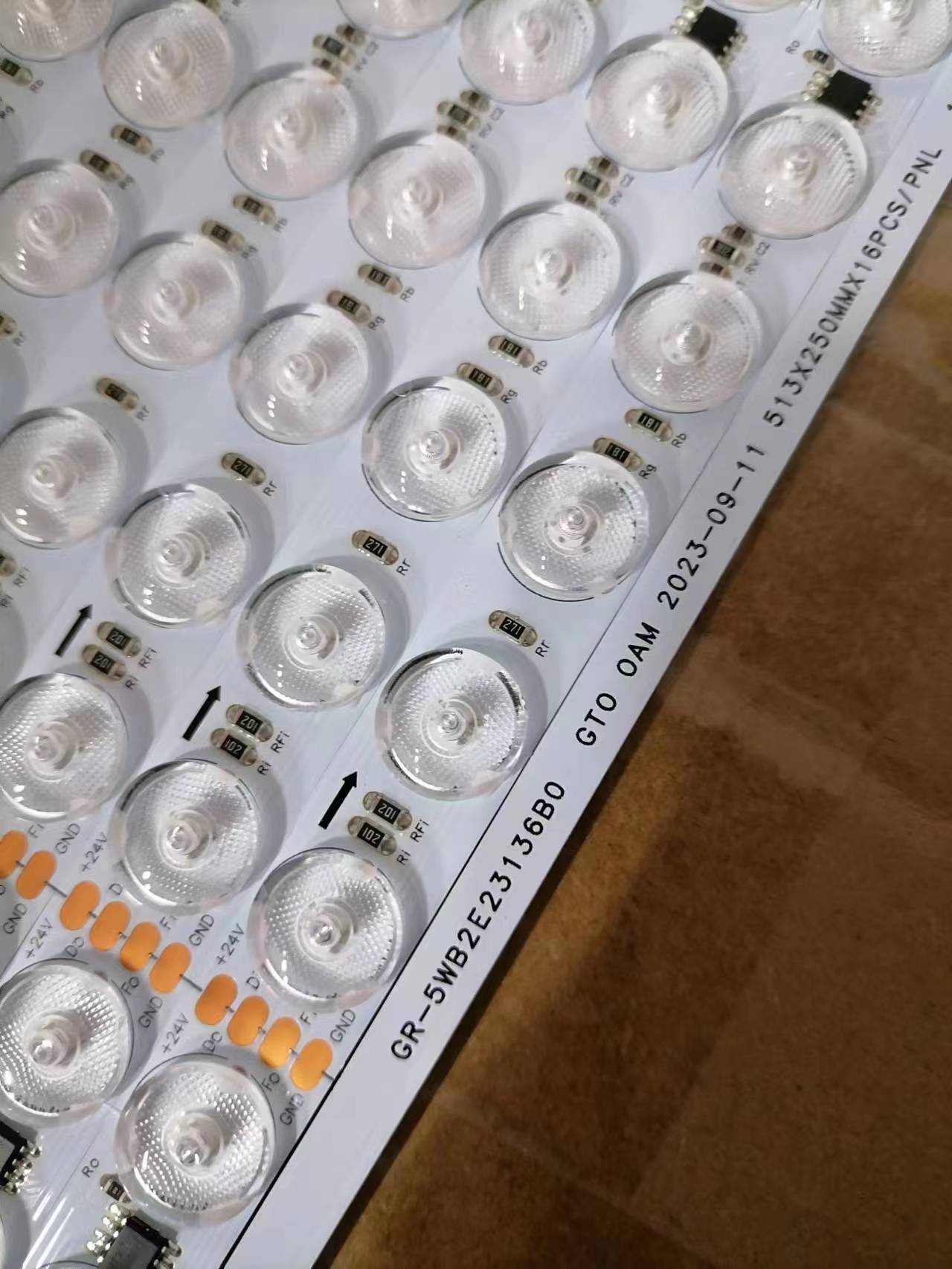

Product details for 60led pixel led strip 1934 with lens

Below is  48led per meter

1934 led strip with RGB color optional

white color

Ip68 with silcone gel coating

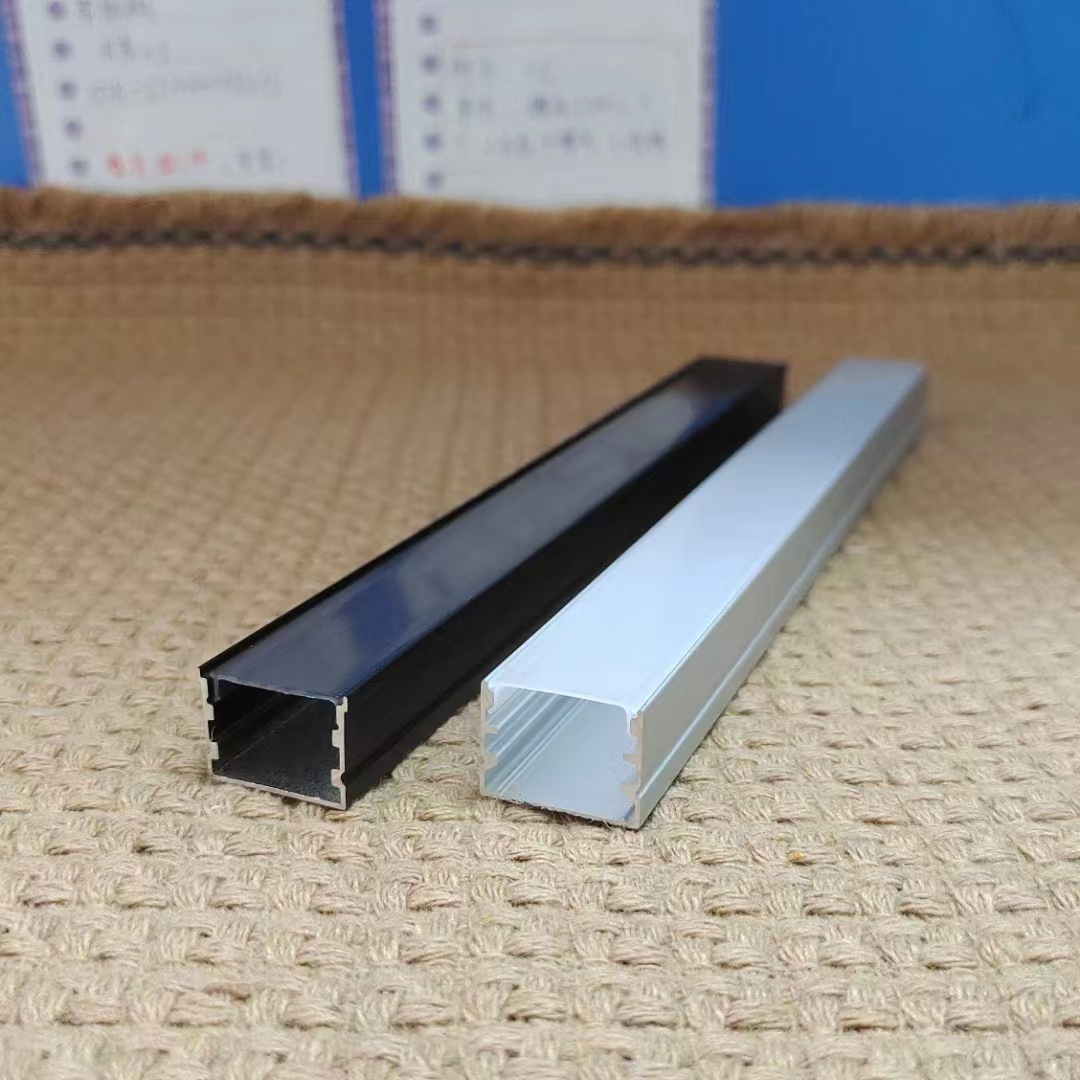

used with 20mm20mm size led aluminiumprofile /used to make digital flex led silicone tube
