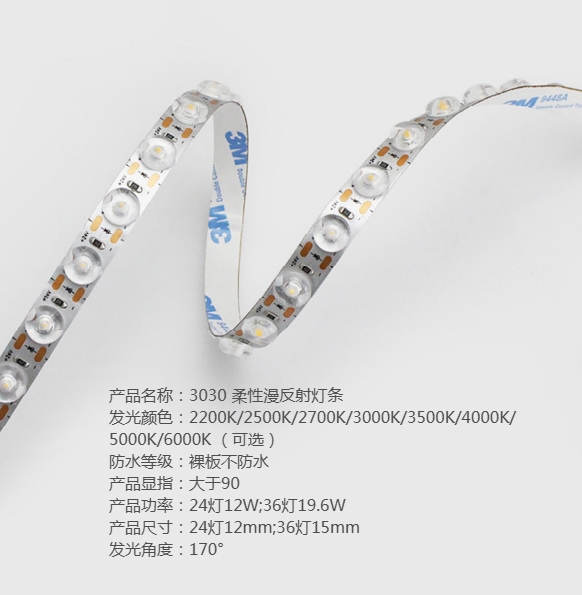

Dc24v monochrome 3030 flexible diffuser led strip lighting 36led 24LED per meter
below led aluminium profile iwth 10cm width and 3.5cm height
SPI Type optional
dmx512 type optional
RGBW color optional ( No dmx512)
Advantage
Using TPU material, anti-yellowing, high temperature resistance, corrosion resistance, weak acid and alkali resistance, good flexibility;
PU glue potting, strong adhesion, good durability, high reliability;
It can replace the traditional hardware wall washer or LED light bar, with small size, light weight and flexibility;
flexible application and easy installation; a variety of beam angles are available,
采用TPU材质,抗黄变,耐高温抗腐蚀、耐弱酸碱,柔软性好; PU胶灌封,粘接性强、耐久性佳,可靠性高;
可以代替传统的硬体洗墙灯或LED灯条,尺寸小、重量轻、可弯曲;应用灵活,安装简便; 多种束光角可选,
Speciciation
Dc24V 19.6W/meter with 36pcs LED/meter; 12Wwith 24LED/m

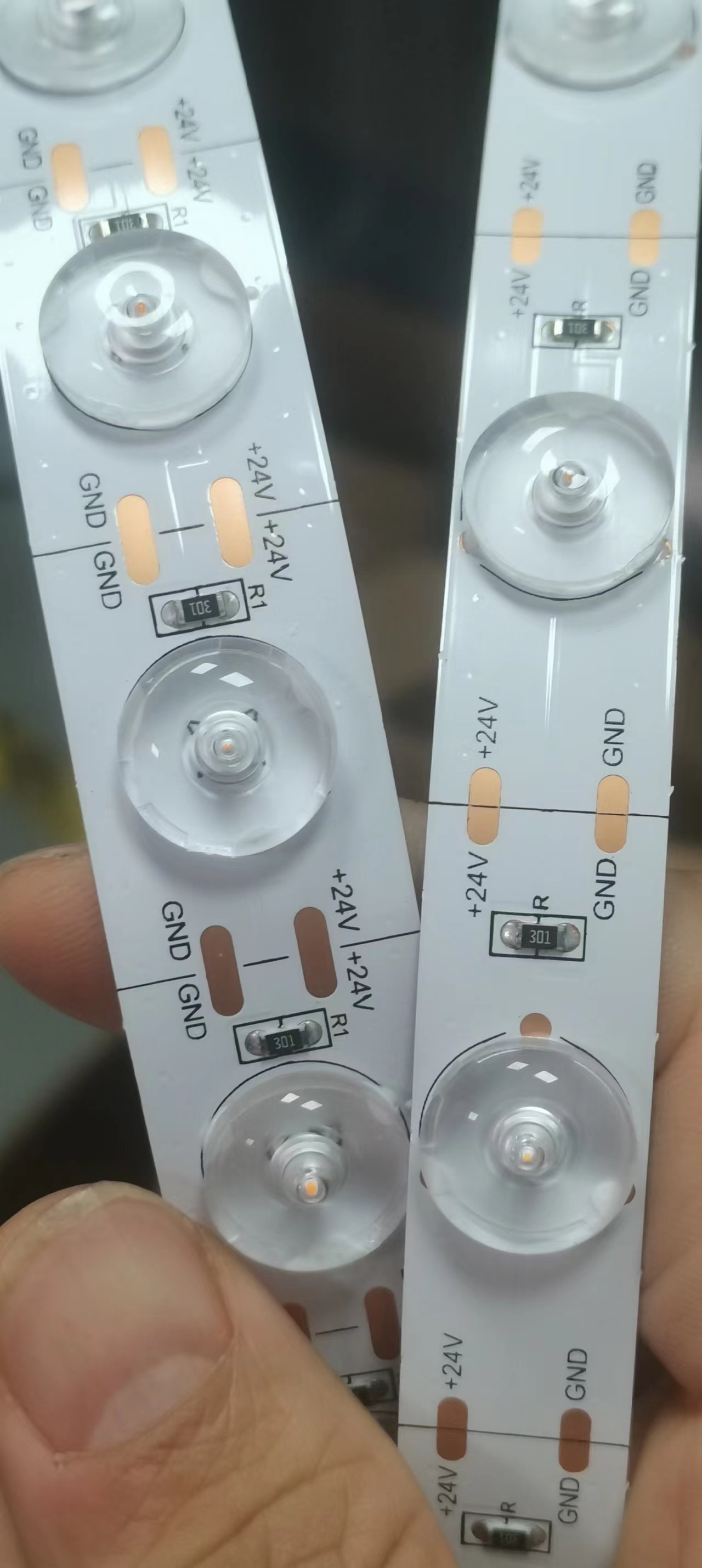

1led as one cut unit.
size: 1000mmX3mmX20mm(LXHXW) 36led/M
1000mmX3mmX15mm(LXHXW) 24led/M
Color: white
warranty: 3 years
Beam angle: 165degree in stock (15degree 45 degree 60 degree 10*45 optional)
Installing distance 5cm away from the wall
can light up the wall to 2-3meter long tall
flame retardant grade:UL94-V0 with test report
Parameter
Color | 1800K 2300k 2700k 3000k 4000k 5000k 6000k |
cable | 2pin cable cable AWG20 |
Beam angle | 165° in stock, other 15/30/45/60 10*60° optional |
width | 20mm/15mm optional |
LED quantity | 36led,1led per group ,cutting unit:2.77cm |
Brightness | 1400-1500LM/meter |
LED Type | 3030 white led |
Power&voltage | 20W/meter/ Dc24v |
accessories | Adhsive tape or clips |
warranty | 3years |
