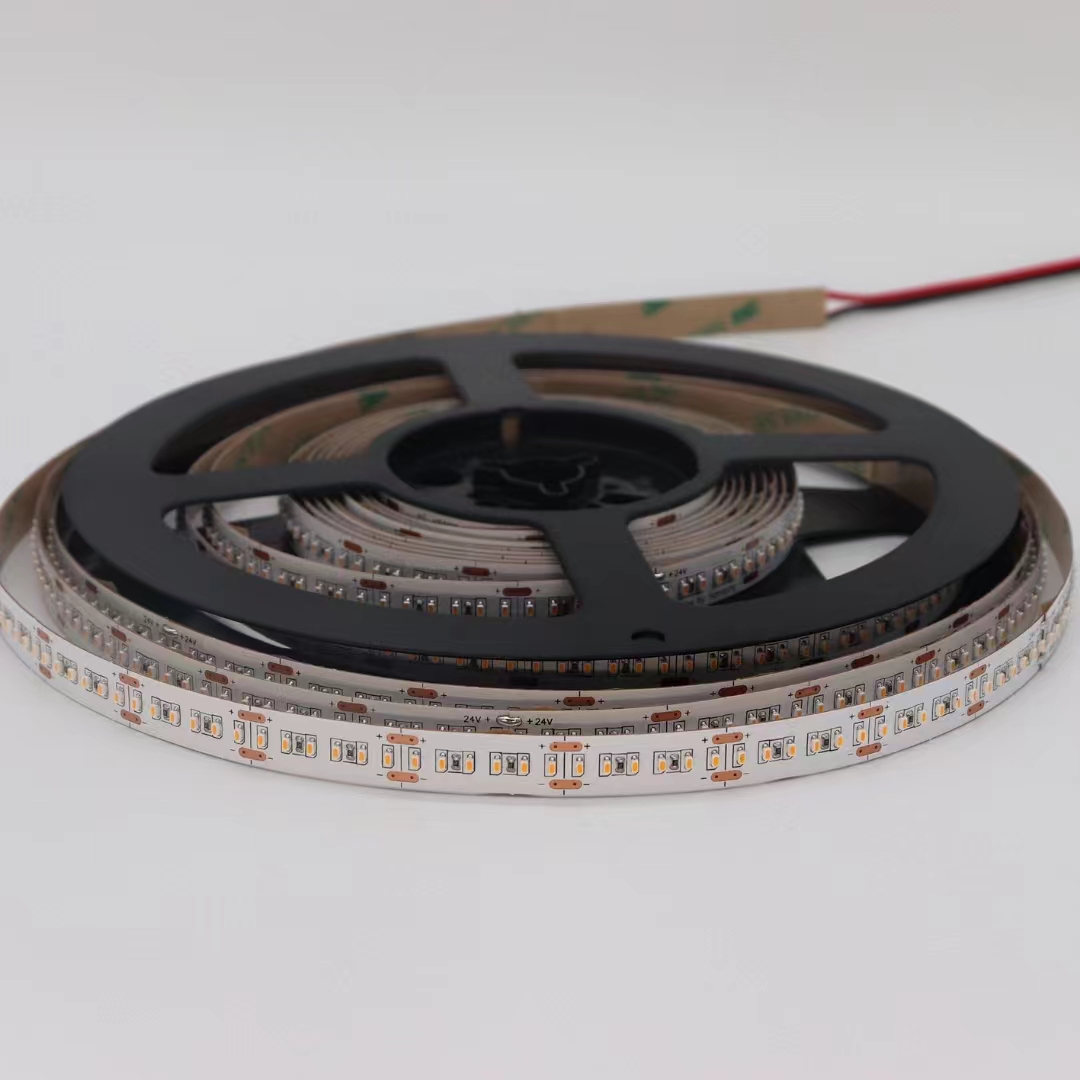

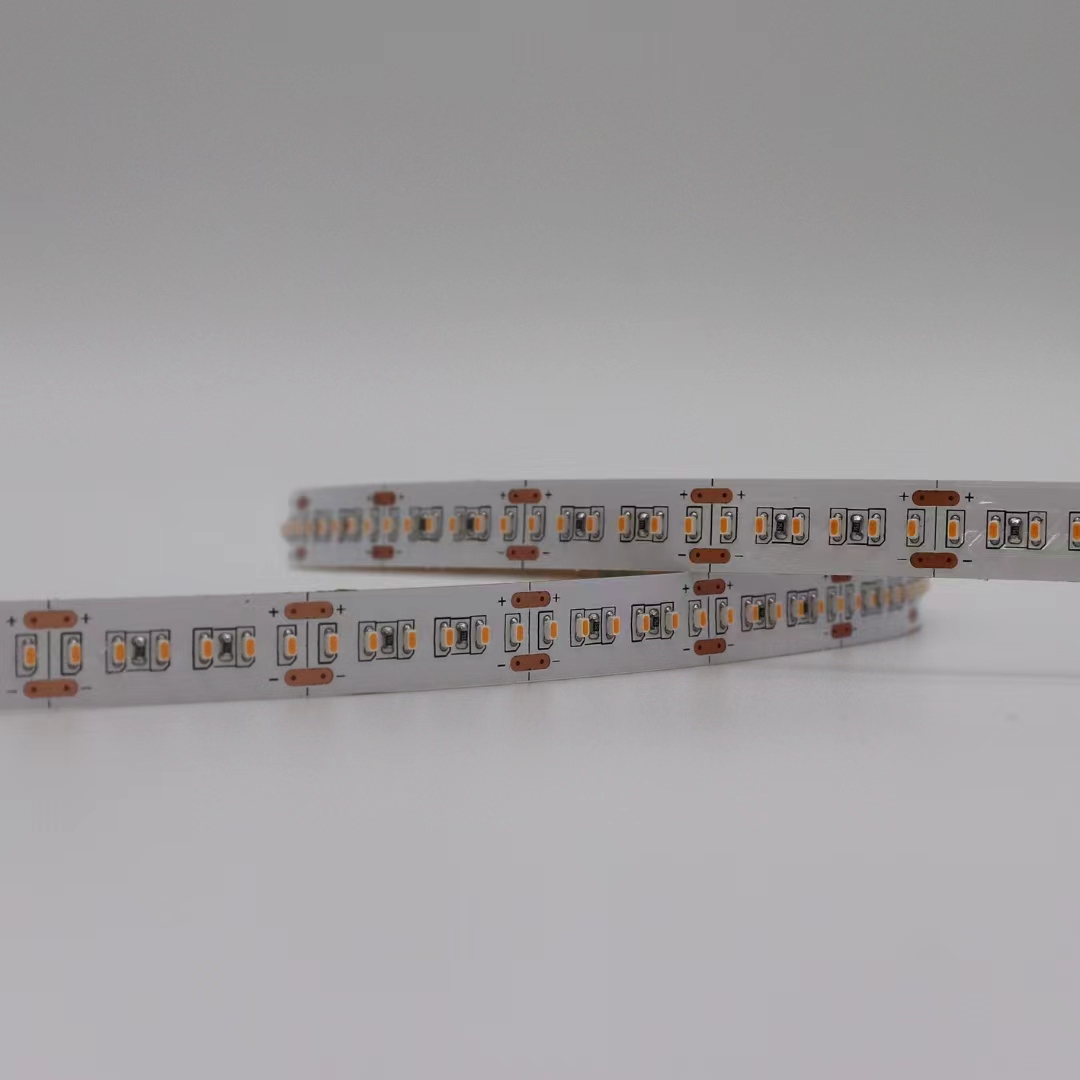

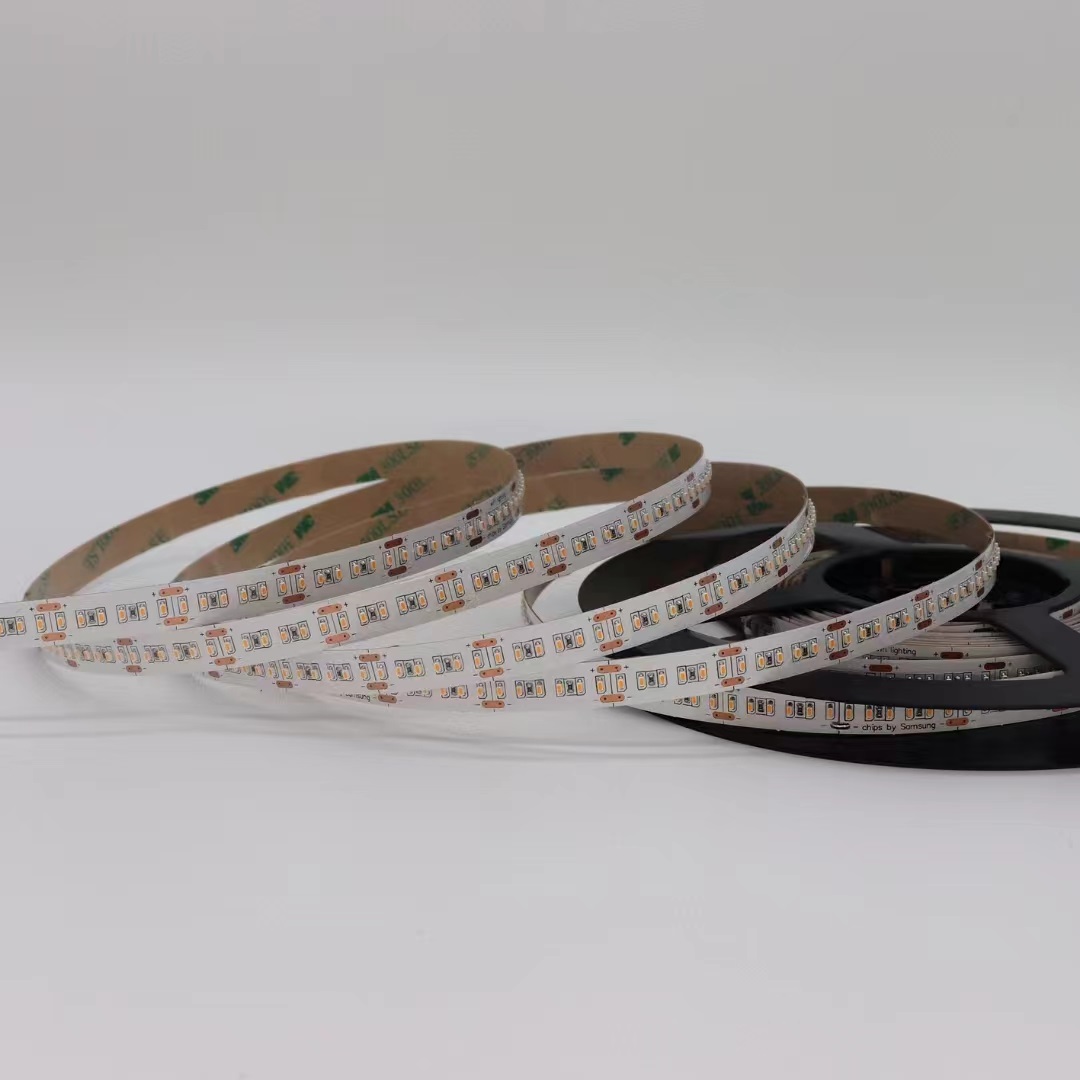

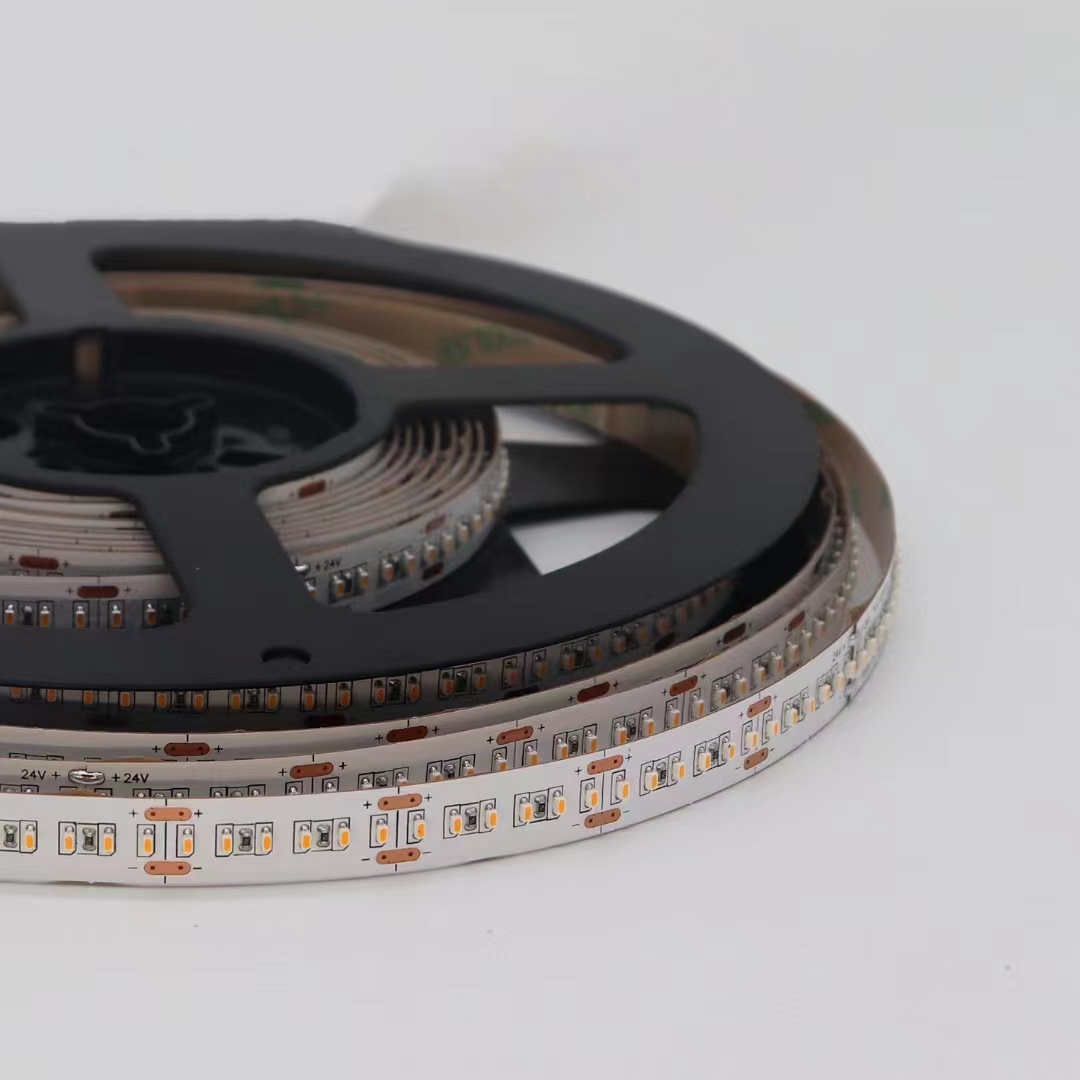

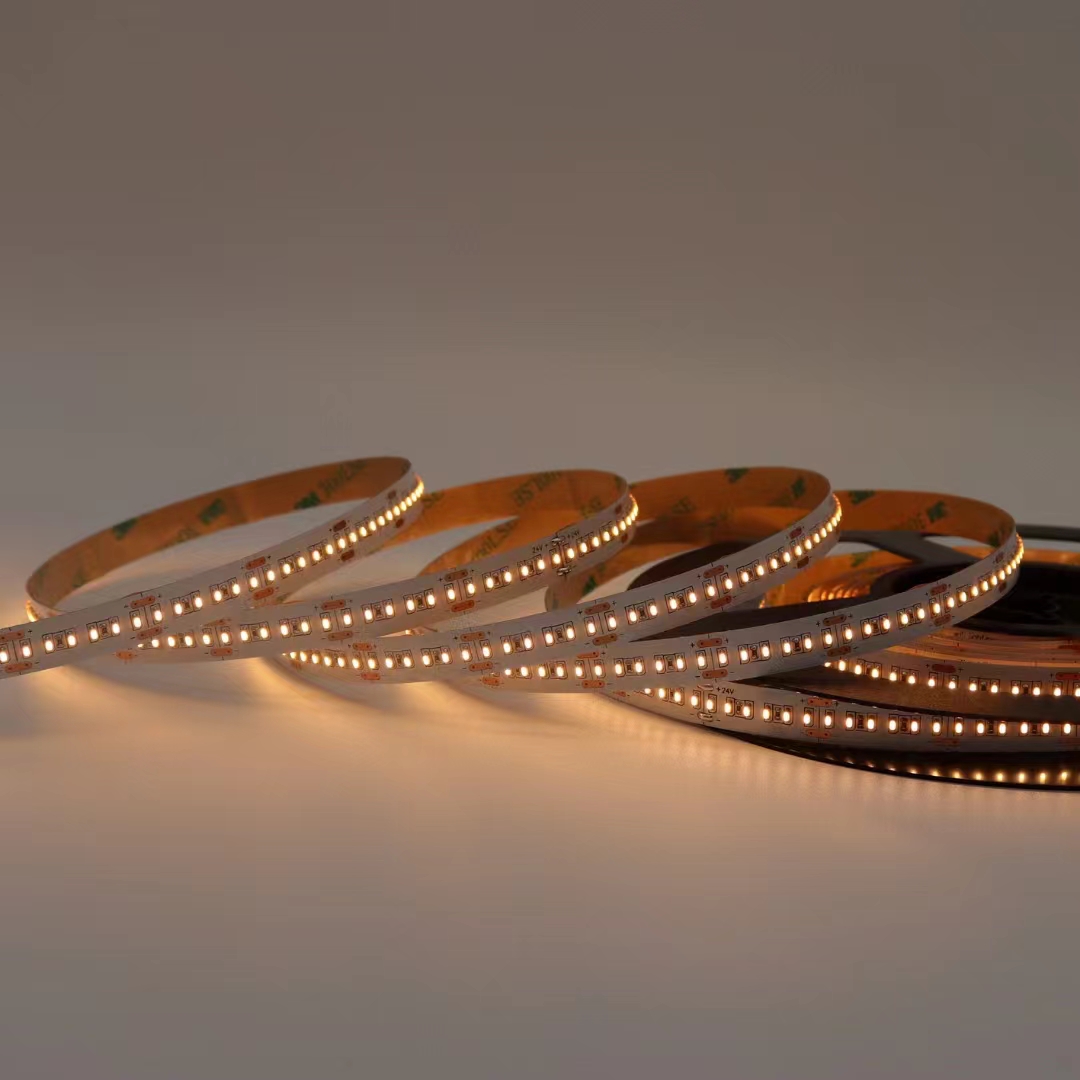

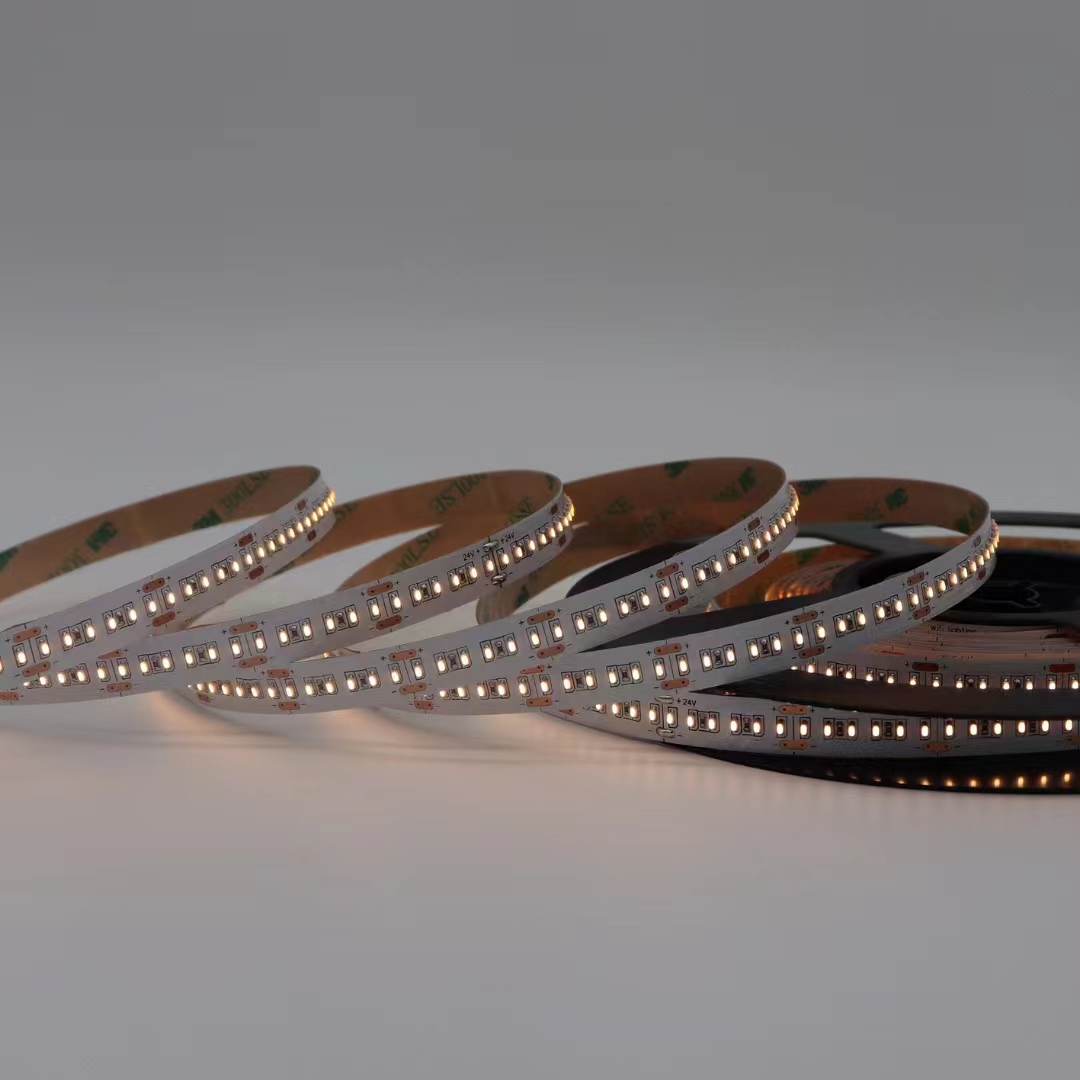

Dc24V  Dual CCT Dimmable 2216 LED Strip 240leds/M 10mm width

Dc24V  Dual CCT Dimmable 2216 LED Strip 240leds/M 10mm width

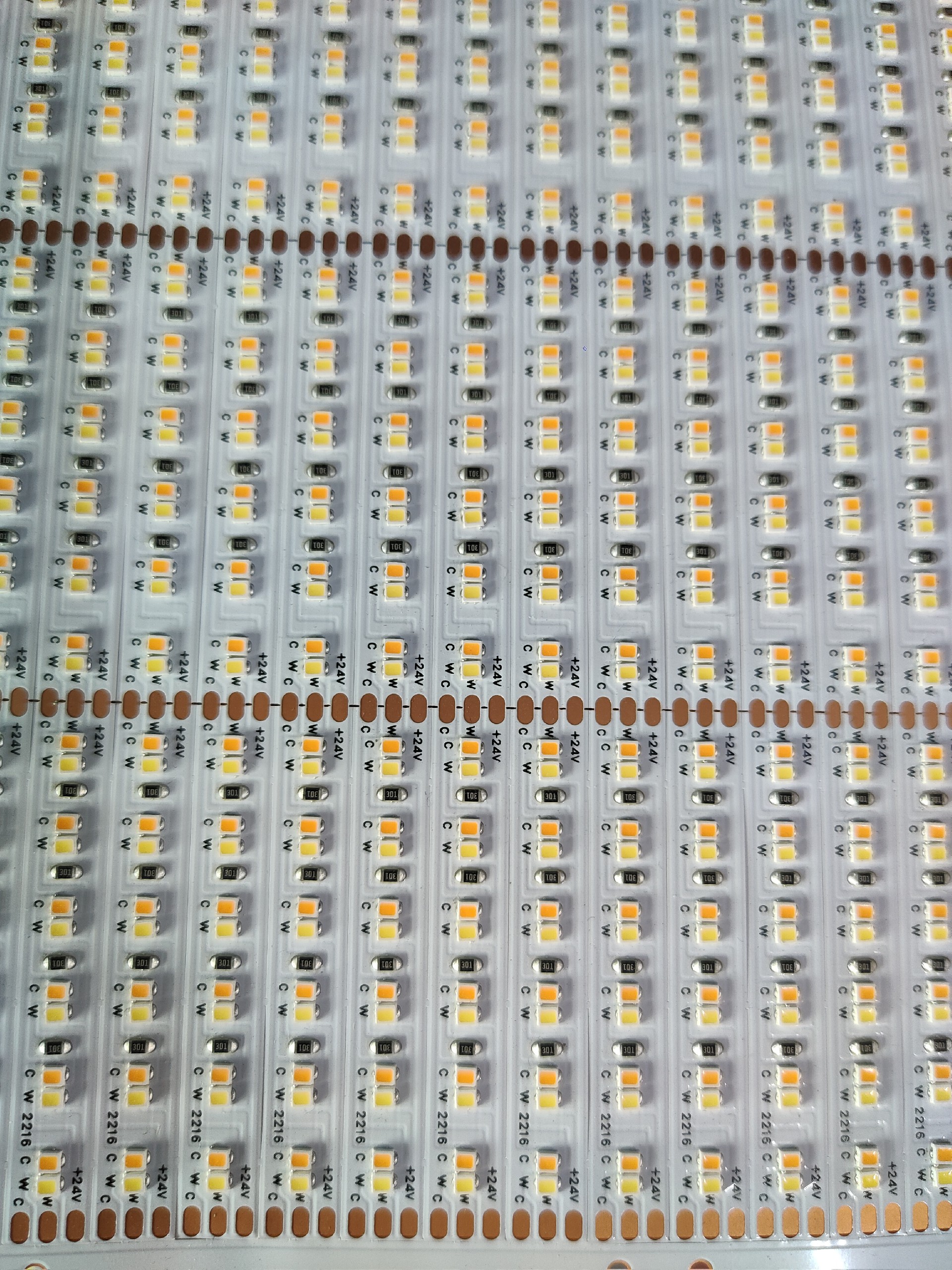

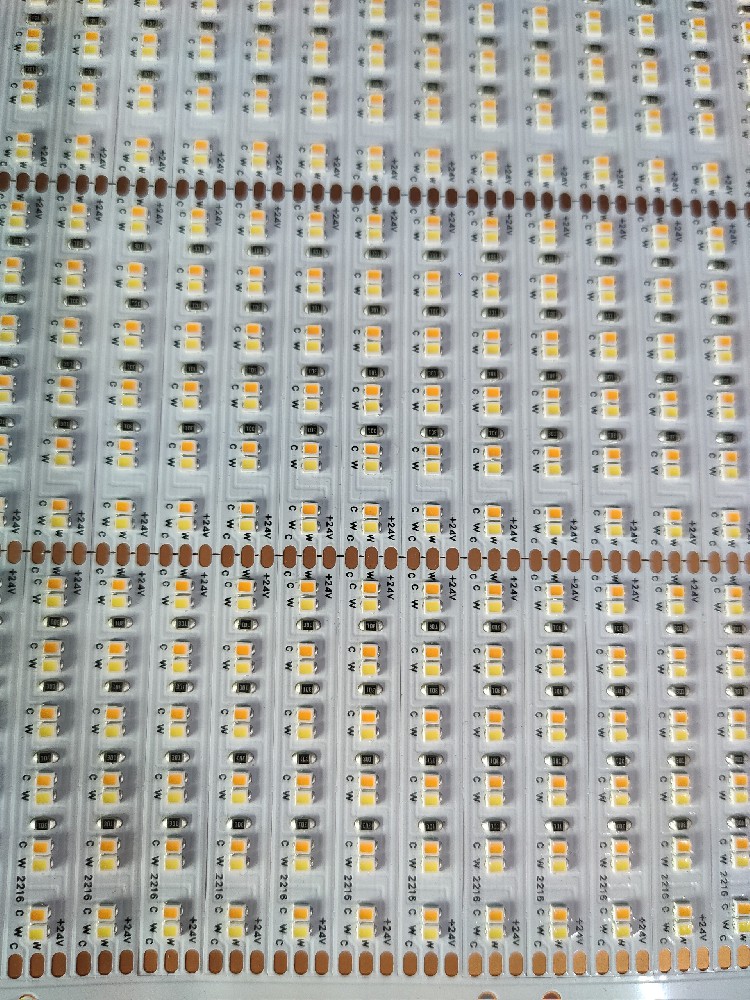

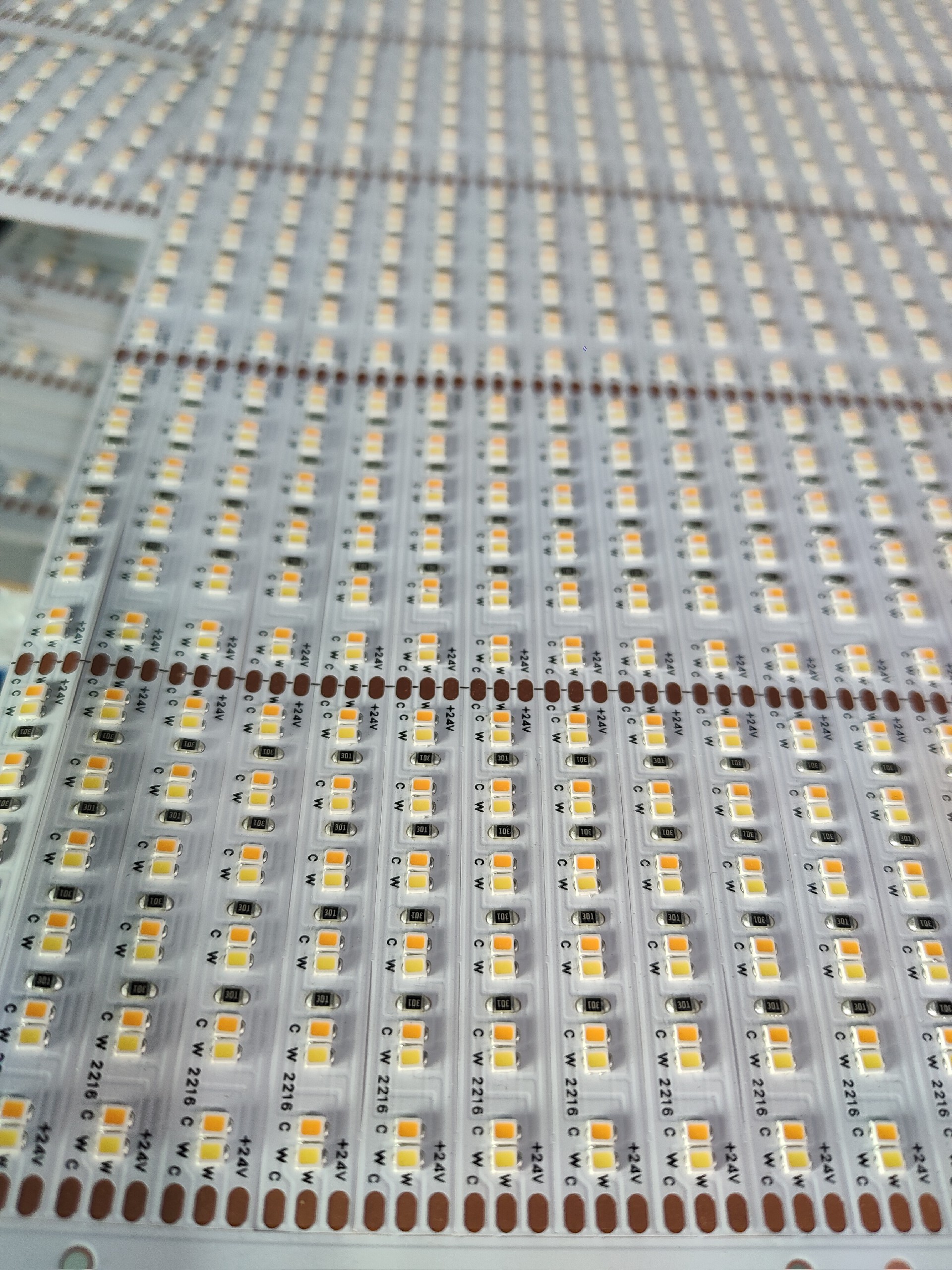

2116  WW+W double white color chips smd led strip is a new type of CCT dimmable led strip,

which has better dimmable effect for the closer white chips in one 5054 smd so can achieve better mixture white color.

the normal two channel dimmable controllers can control it.,it is 240led per meter ,better bightness and better for dimming.


There is 2835 led optional !

Specification

• LED Type:High Brightness 2216 SMD LED,

• 16.4 ft / 5m Reel,

• Viewing angle:120 degree,

• Dc24V working voltage  15W/m

• 24V DC Super bright NO-Waterproof /Waterproof CCT 2835/3528 SMD Cold White (6500K) + Warm White (3000K) LED strip lighting

• LED Quantity: 240leds/Meter (120pcs Warm white LED 2700K  +120pcs Cold White LED6500K) (can make customized CCT as customer required)

• Easy and flexible installation. Ideal for home and business lighting decoration.

• High brightness, wide angle LED chip. Low power consumption - 10W/M

• Comes with 3mm adhesive sticky backing (Not included power adapter and controller)

Dimension:

• 5000*10*2.5mm (non-waterproof),

• 5000*10*3.5mm (IP65 waterproof),

• 5000*12*4.5mm (IP67/68 waterproof),

• Waterproof IP grade:IP20 Non-waterproof with 3M sticker on the back,

• IP65 waterproof is silicone gel or epoxy on the surface,

• IP67: silicone tube,

• IP68: silcone gel(or epoxy) inside silicone tube.

Below is monochrome color  optional

the wiring chart

the dual white led controller and led amplifier
