Dc24V 12mm RGBW 4in 1 5050 flex LED Strip 120leds/m

Products Inquiry

Product Details

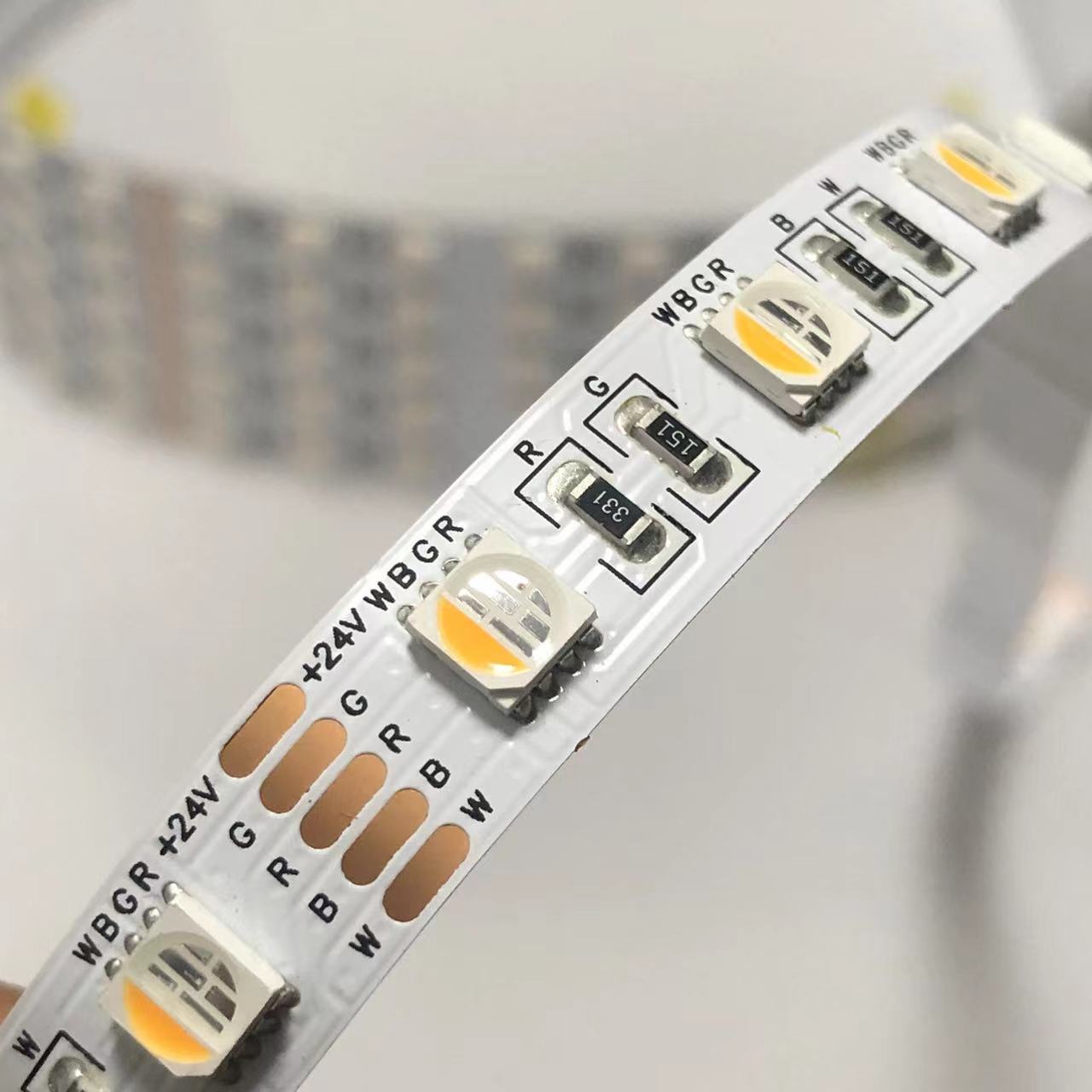

Dc24V  12mm RGBW 4in 1 5050 flex LED Strip  120leds/m



RGBW led chip is the new chip,which have R,G,B,W four color chips inside one 5050 SMD LED.

The white color is much puerer and higher brightness.Can be controlled by wifi remote and cell phone(Android ,IOS).

Change any color and dimmable as you want at any time.Can be DC12V,D

120 leds  LEDs per meter.

RGBW(White coloe insde could be warm white:2800-3200K,nature white:4000-4500K,pure white:6000-6500K. )

LED Type: SMD 5050 RGBW

Color: warm white, white, nature white

LED Quantity:  120  leds/Meter,

View angle:120°

PCB width: 12MM

Working Input Voltage: 24V

Drive Mode: Contant Voltage


This is a PWM control RGBW color LED strip without Pixel
SMD RGBW 5050 LEDs ,

5meters/reel, 12mm PCB width
The cutting unit length is 50mm(24V),
The PCB is made by 2 Ounce 35um  thick copper
All soldering Pads are very large, allowing you to easily cut and reconnect
DC24 constant voltage operation
Both ends have 5pin bare wires for powering
3M tape attached on backside of FPC

Installing : non-waterproof: with 3M adhesive on back side for sticky; waterproof: screw+silicon clip, or 3M adhesive back side.



Product details

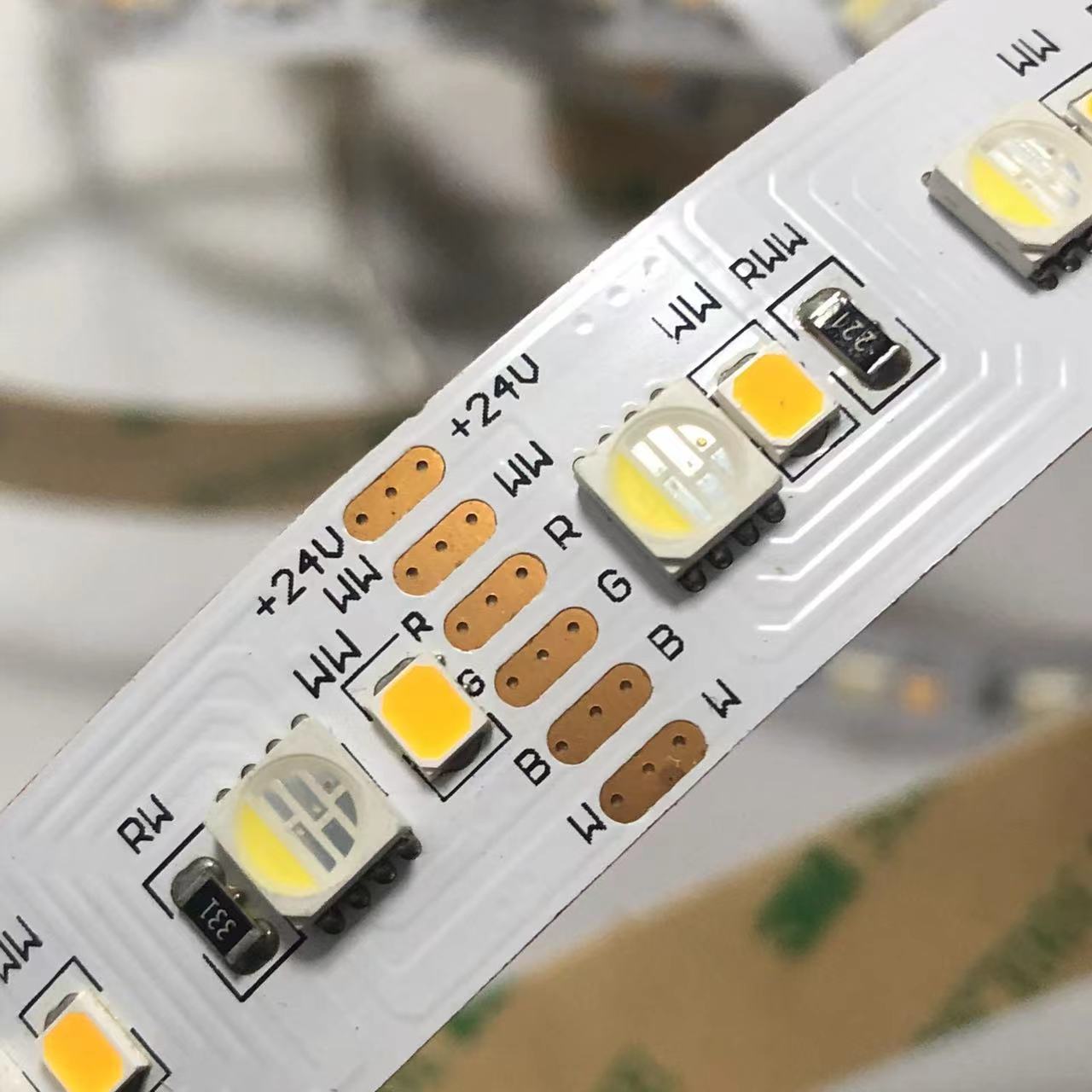

 There are many rgbw type led strip optional as follow

waterproof Ip68


Waterproof Rate:

IP20: Non-waterproof with 3M sticker on the back,

IP65: waterproof is silicone gel or epoxy on the surfacewith 3M sticker on the back,

I67: silicone tube

I68: silicone glue inside the silicone tube


•Widely used for home decoration use, hotels, clubs, shopping malls

•Architectural decorative lighting, boutique atmosphere lighting

•Extensively applied in background lighting, concealed lighting, channel letter lighting

•Emergency & security lighting, advertisement sign lighting

•Decorative lights for holiday, event, show exhibition

•Applicable for automobile and bicycle decoration, border or contour lighting


Do not use any acidic, alkaline adhesive fixing Product

It is prohibited to make products with a hard object collision,
Do not use your fingers to press LED
Don’t make positive and negative reversed
Don’t install when product is working
Installation, repair and maintenance must be made by
professional Person
Before you use them make sure the power supply voltage
to meet the requirements and wire connection correctly

wiring chart

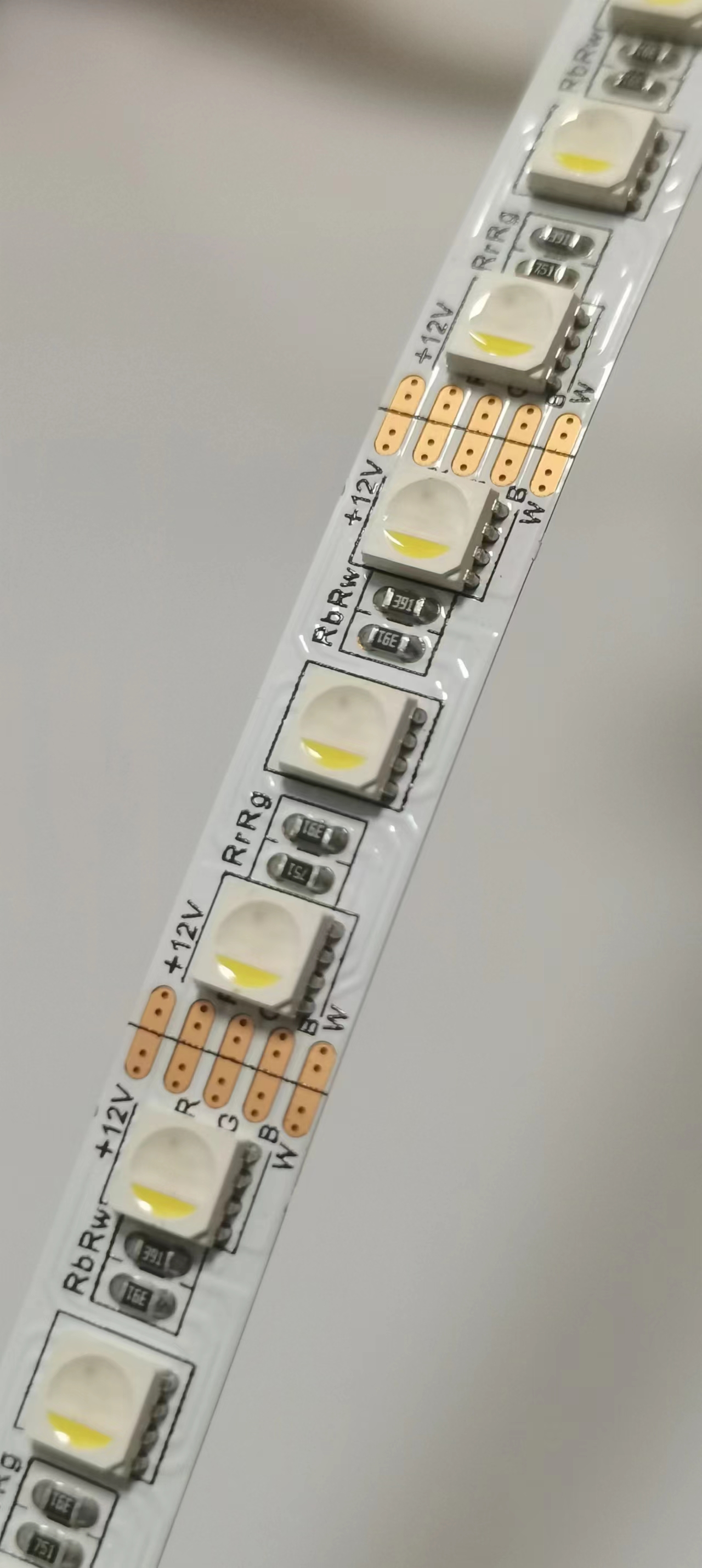

There is 10mm width with 120pcs 4040 RGBW led per meter optional !

12v rgbw 4040 led strip.jpg
