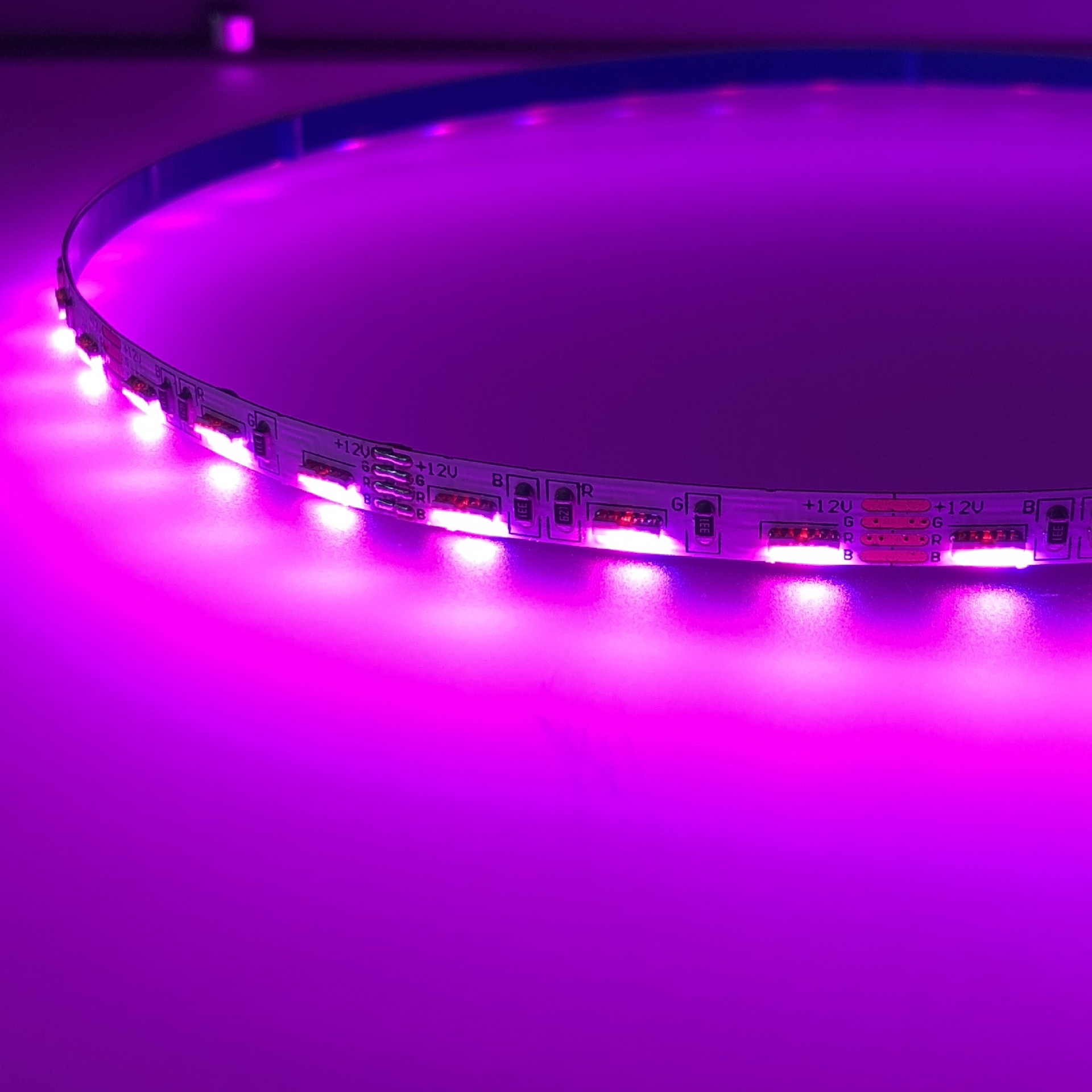

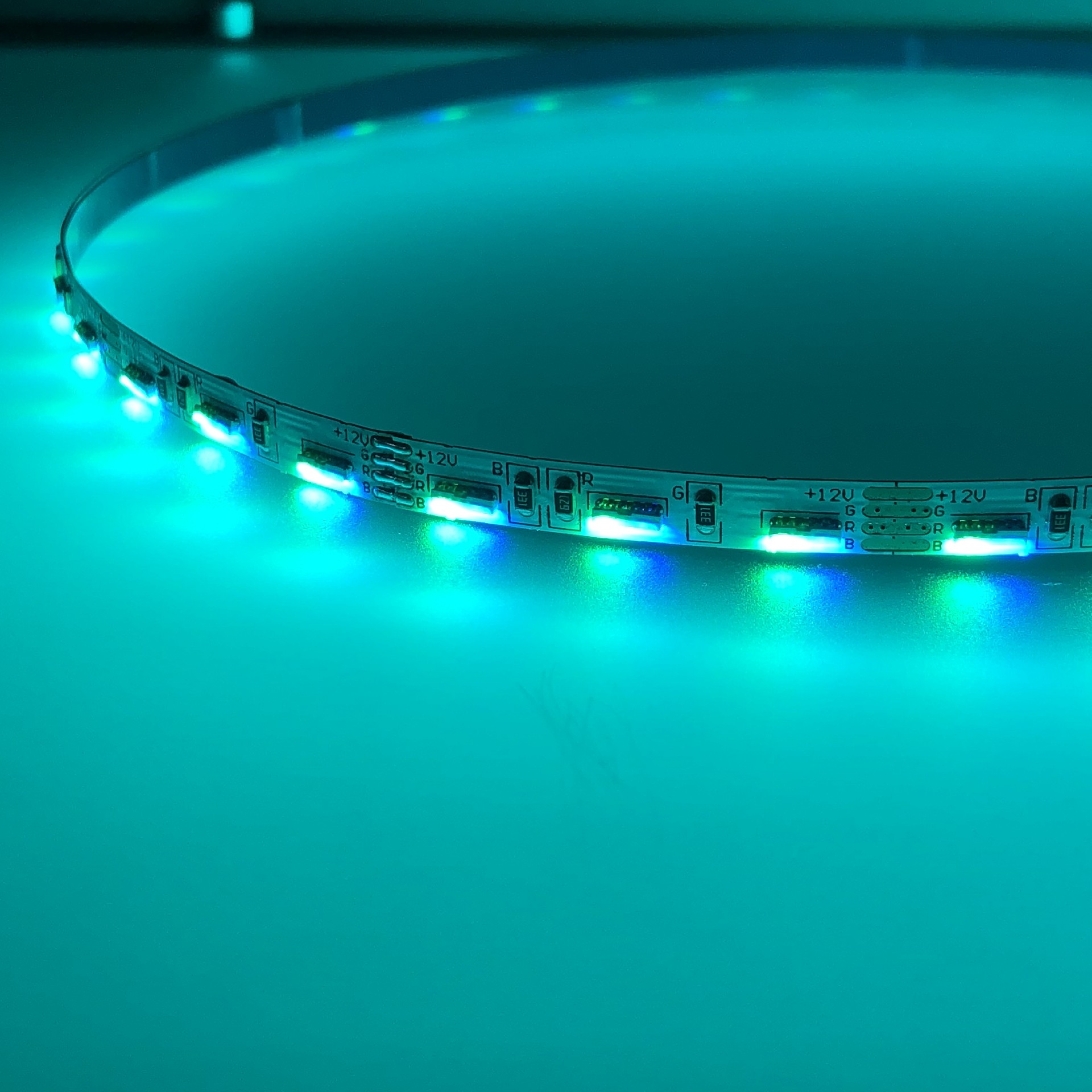

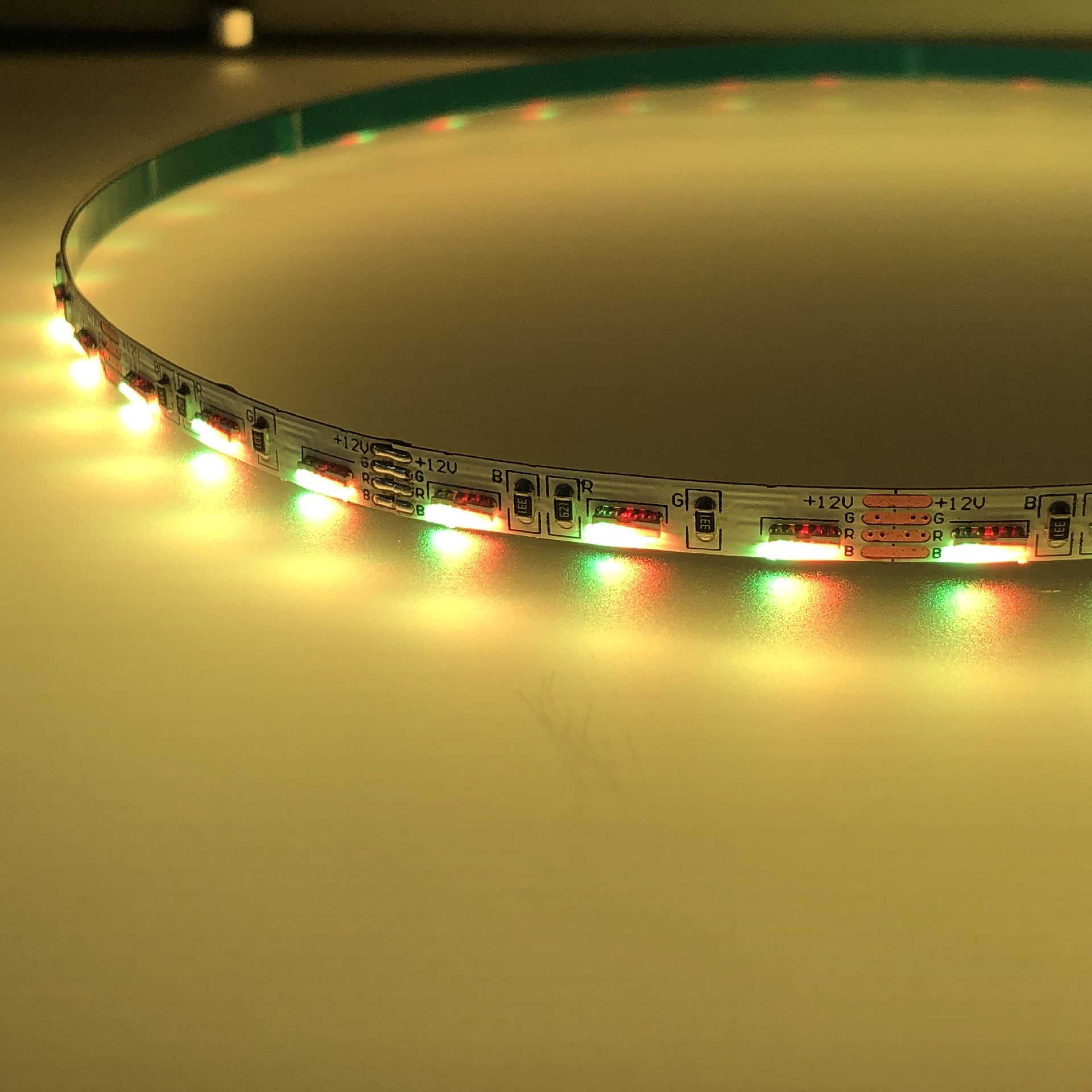

Dc12V 5mm width side viewing 335 SMD RGB flexible led strip 90 leds/m

Dc12V 5mm width side viewing 335  SMD RGB flexible led strip 90 leds/m

Product Parameter


Description

This is a PWM control RGB color LED strip without Pixel
SMD RGB 335 RGB LEDs ,

5meters/reel, 5mm PCB width

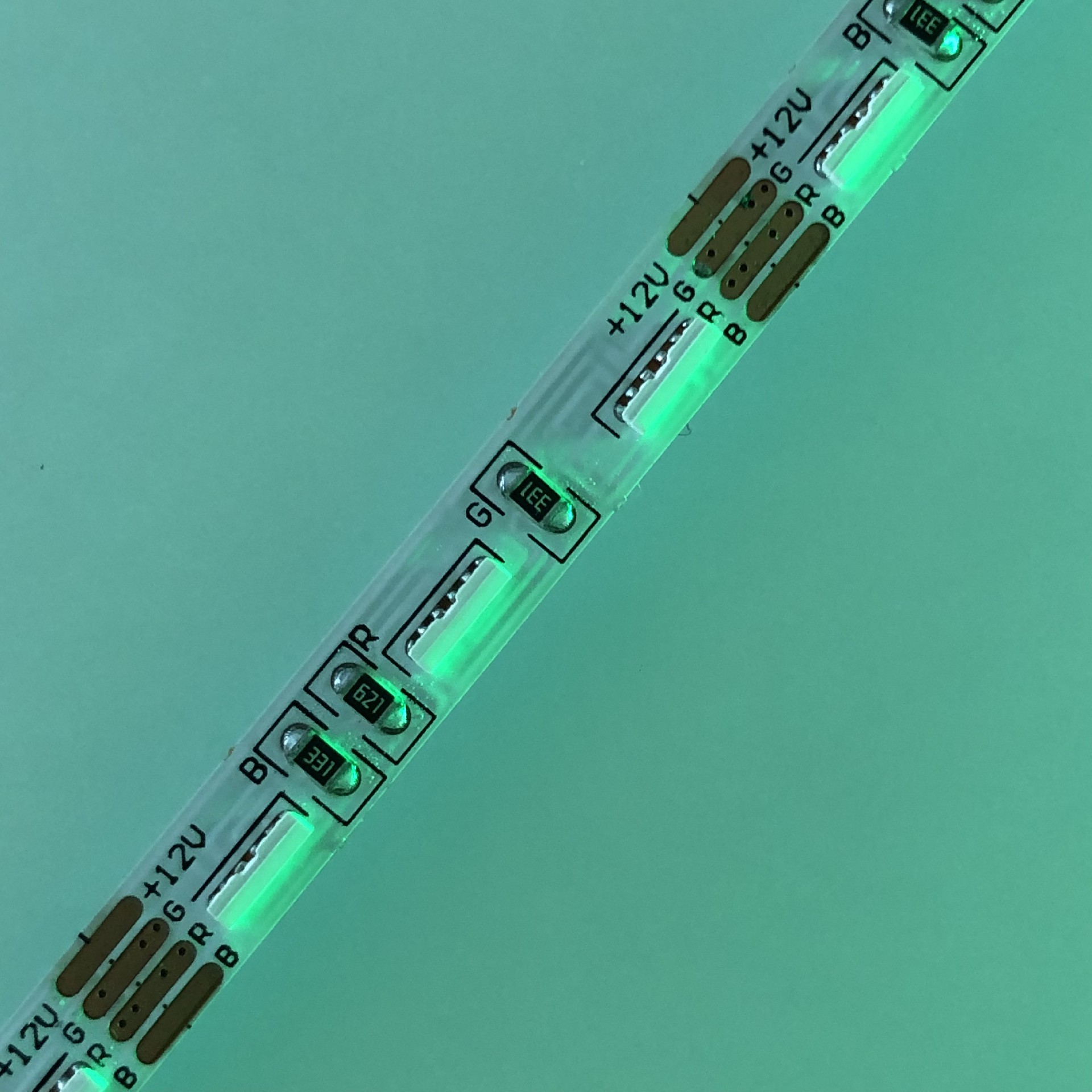

The cutting unit length is every 3 led (12V),
The PCB is made by 2 Ounce thick copper
All soldering Pads are very large, allowing you to easily cut and reconnect
DC12V constant voltage operation
Both ends have 4pin bare wires for powering
3M tape attached on backside of FPC
4 different waterproof types IP22, IP67，

Application:

•Widely used for home decoration use, hotels, clubs, shopping malls

•Architectural decorative lighting, boutique atmosphere lighting

•Extensively applied in background lighting, concealed lighting, channel letter lighting

•Emergency & security lighting, advertisement sign lighting

•Decorative lights for holiday, event, show exhibition

•Applicable for automobile and bicycle decoration, border or contour lighting

Features:

•Superbright 335 SMD top LED, high intensity and reliability.

•Long life span 50,000+ hours

•Cuttable every 3 LEDs along the cutting marks, according to pratical requirement.

•Flexible ribbon for curving around bends

•Low power consumption

.Installing : non-waterproof: with 3M adhesive on back side for sticky; waterproof: screw+silicon clip, or 3M adhesive back side.

waterproof Type

IP65 with silcome glue add 0.5USD per meter .
IP67 with silcone tube add usd 0.5 per meter .
IP68 with injectioned silcione gel add 1.0 USD per meter

Remark

Do not use any acidic, alkaline adhesive fixing Product

It is prohibited to make products with a hard object collision,
friction
Do not use your fingers to press LED
Don’t make positive and negative reversed
Don’t install when product is working
Installation, repair and maintenance must be made by
professional Person
Before you use them make sure the power supply voltage
to meet the requirements and wire connection correctly

Connection diagram
