Rose lighting pixel led bar lights up the theater in International Circus City in chongqing city

Author:admin Addtime:2023-04-18 23:22:14 Click:394

Rose lighting pixel led bar lights up the theater in International Circus City in chongqing city

Rose lighting sk6813  pixel led bar lights up the theater in International Circus City in chongqing city


This project is Designed and installed by  Mr  Zhang  lighting engineer

the location:   a theater in International Circus City in chongqing city

1)Light strip Type

waterproof Dc12V  Dual signal  LB1934A  60leds   60 pixels/m  ,one pixel broken,no affect next one pixel working!

Quanitty: 600meter  in total

Advantages of the 12v indiidually addresable sk6813 pixel led strip please .

1)No voltage drop with 10meter long with two  power input at ends  ,Bec we use the 10mm width with enough  2oz pure copper pcb board.

2)60pcs 5050 RGB epistar led chip with pure copper bracket and pure gold wire and brightness>2600mcd

3)Standard TTL signal :sk6813 IC chipset(same work as ws2811 ,ws2812,ucs1903,ect)

4)Double membrance covering the pcb board ,good protection,

5)AWG 20   cable

Specification:

Color:Full Color (RGB addressable)

LED Quantity: 60 leds per meter

Ic Type:  sk6813 (60 pixels per meter )

Controller system: SPI led controller or Art net

Working Input Voltage: 12V  14.4watt/meter

Size:  5000*10*2.5(mm)

View angle:120°

white/black PCB with 10mm width,

Grary scale:256

PCB: 2.0ounce thickness board,(4OZ optional )

click our webiste for details

https://www.rose-lighting.com/products/dc12v-individually-digital-full-color-5050-rgb-led-strip-sk6813-good-replacement-of-ws2815/



 installation method  for our led strip

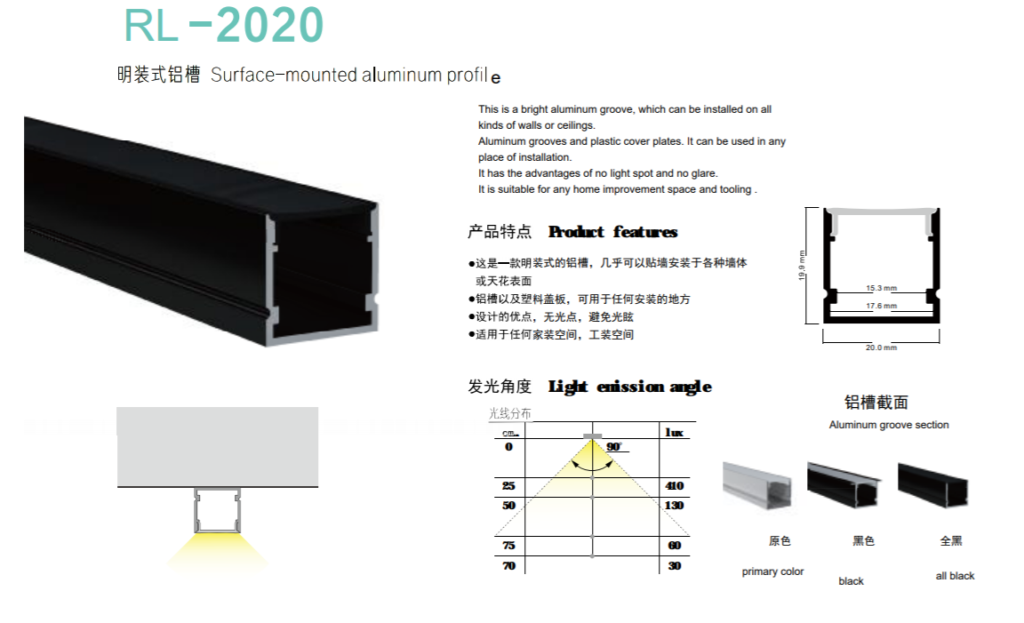

the LED strip  is moutned  inside the  black aluminium profile with size 20mmX20mm(LXH) and 30mmX20mm (LXH)

Aluminium profile type

the sk6813 pixel led strip is moutned inside the 30mmX20mm led aluminium with  silver color to make the frame shape

Installing  method : by aluminium clips and screw

Download the popular Aluminium profile catalog  for led strip here please

https://www.rose-lighting.com/led-aluminium-profile-price-list-rose-lighting-2022/



2)led control system:

Artnet-Pixel (spi/dmx) led controller offline stand-along player Madrix effects record 6612-pro

which support 12X1024 pixels with sd card and suppor dmx512 console.

GC6612 pro  Artnet DMX Madrix Pixel led Controller with 12port – Support Artnet MADRIX Jinx!,Resolume,etc.

Quantity:10pcs

Advanatges
1). GC6612pro with 12  port Artnet Madrix Pixel led Controller DMX Artnet Controller suppport 48universie supports Art-Net protocol, 12 ports,

each port outputs max 6 universes.
2).Support Artnetsoftware-such MADRIX Jinx!,Resolume,etc
3). supports dozens of led chips, such as WS2812, WS2813, UCS1903, TM1914, sm16703 dmx512 etc
4). In online mode with madrix -GC6612pro  supports max 1020X12  pixels with 12 ports.
5)suppport cascade-more than 10pcs
6). support DMX512 ic address edit

7)support offline with sd card

8)support dmx512 console or other dmx512 devoice .
look for details from rose light website please

https://www.rose-lighting.com/products/6612-pro-work-with-madrix-to-record-effect-online-user-manual-with-video-and-picture/

operate the GC6612pro led controller  via the dmx512 console --which has fixed programs and mode to make all kinds of lighting effect











 wiring chart for our sk6813  led strip with led controller  and led power supply

https://youtu.be/zd7zwK8EKz4

by the way --if you donot have dmx512 console ---need to play animation onlive --use the madrix software

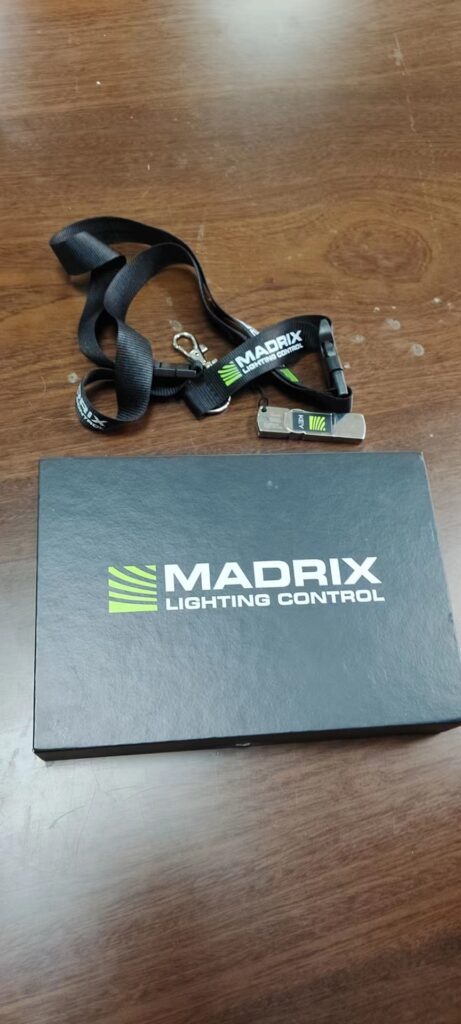

3)online software: Madrix 5.0 with 2048 universies

madrix download link .

https://www.rose-lighting.com/download/

if you need to offline --with sd card--to use offline software -shadow Draw--which suppor record madrix effect --then copy the effect file to sd card when offline needed.

Technology advtange: Programming shadowdraw led software with Automatically identify drawing map smartly

the can use recording toolng to record the madrix software to play the madrix effect when online , or copy to sd card when offline.

offline programming software dowanload

http://www.rose-lighting.com/wp-content/uploads/sites/53/2023/02/ShadowDraw_EN_SETUPV6.46.rar

4)led power supply

There are  rainproof  led  power supply  model S-400-12V used for   project

Quantity:40pcs which is  used for the project . details as follow

https://www.rose-lighting.com/products/rainproof-dc5v-dc12v-dc24v-400watt-led-power-supply-for-outdoor-project-use/

we did test for all led items always before shipment to make sure all work  well ,
