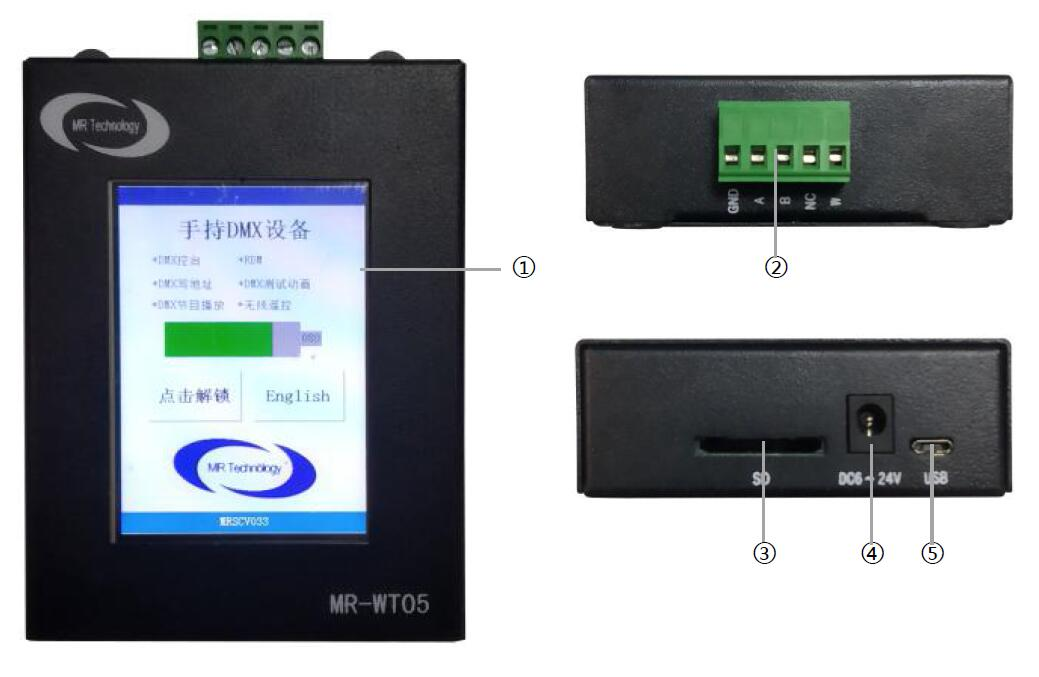

MR-WT05 MR-WT25 Battery Touch Screen DMX RGB LED Controller DMX Address Code writer
1. MR-WT05 handheld address writer supports SD memory card, which can store multiple offline data of scene files. It supports loop playback of multiple scenes and designated playback of a single scene. Can be used as an animation effect player .
2. Can simulate DMX512 console, can send channel data casually between channels 1 ~512 for DMX512 channel, can be used as a simple DMX512 console.
3. Multiple test animation effects built in the device. It supports a variety of quick test methods, and can verify the addressing situation of the lamp in various test modes such as color gradually changing, running pixel by pixel and color changing etc..
4. Support parameter setting, current output adjustment, brightness adjustment, and firmware upgrade for MR-DMX05 chip.
5. Support parameter setting, channel counts loaded, baud rate, playback speed, number of colors, current output adjustment, brightness adjustment, color self-checking and so on for UCS chip and SM chip.
6. It has the color picking function, you can select a certain color value in the color wheel, and supports multiple four-color modes.
7. MR-WT05 handheld address writer supports Micro-B and USB interface power supply.
8. It supports many DMX512 IC chip such as MR-DMX05, DMX512AP, UCS512, UCS512C, SM16512, TM512,
SM16512, MR-RDM06, SM16712, SM16722, SM16700 and etc..
below is the detailed user manual of the MR-WT25 please
English manual verison
MR-WT25 Handheld addresser InstructionsV1.2.pdf
chinese manual verion
