Curved shape 12V 20pixels 60led digital silicone Neon flex led with size 23mmX10mm(HXW)

Curved shape 12V 20pixels 60led digital silicone Neon flex led with size 23mmX10mm(HXW)Specification:CatalogSilicone Neon led tube stripModelRL-STR-ws2811-5050 RGB-20P-60-12VLED TypeRGB smd 5050 Warranty3 yearsWorking VoltageDC12VPower14.4W/M(max)FPCB Width10mmLamp Chip BrandsananL
Products Inquiry

Product Details

Curved shape 12V 20pixels 60led  digital silicone Neon flex led with size 23mmX10mm(HXW)


CatalogSilicone Neon led tube strip
Model RL-STR-ws2811-5050 RGB-20P-60-12V
LED TypeRGB smd 5050
Warranty3 years
Working VoltageDC12V
FPCB Width10mm
Lamp Chip Brandsanan
LED Quantity60leds/M
Cutting Unitone led one cut
Color temperature
FPC2unce PCB board with with double cooper layer
Lamp QualityPure copper base and gold wire
ColorRGB addressable
IP RateIP67 waterproof
Size5000mmX23mmX10mm( LXHXW) unit:mm

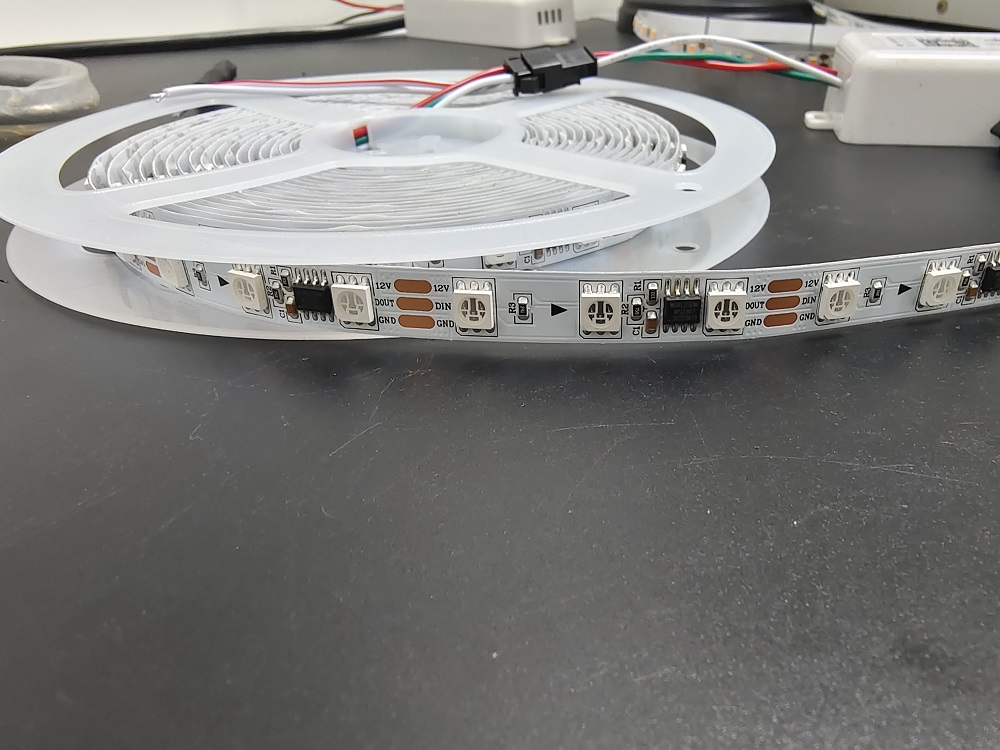

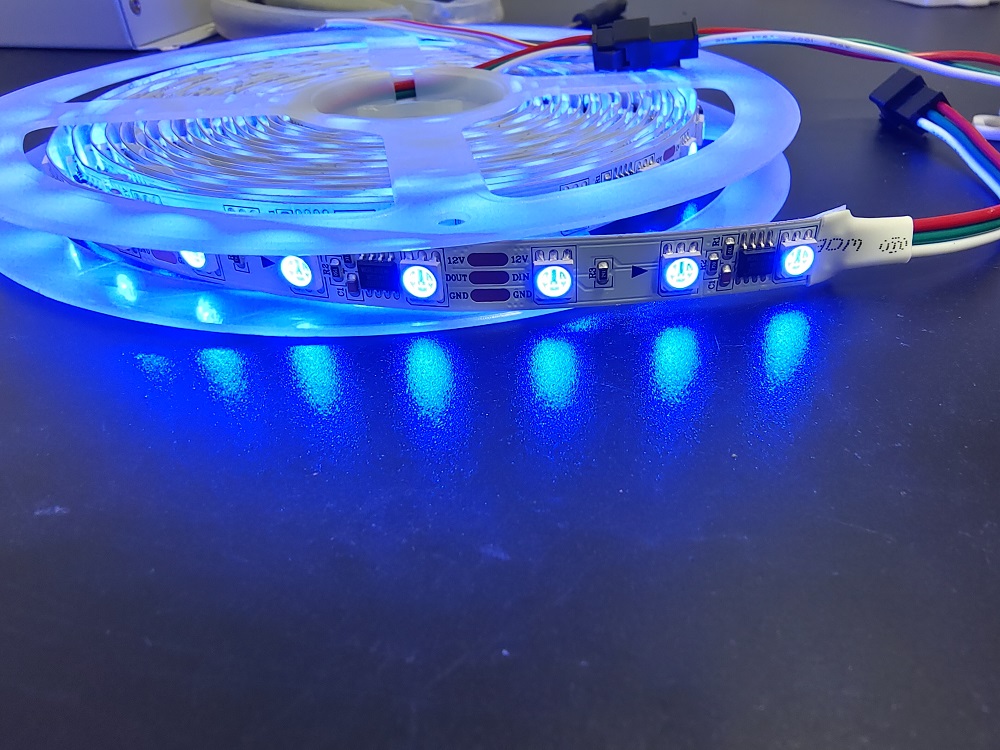

Picture of led strip inside the neon tube

Black color optional!



Advantage of silicone Neon  Tube for led strip

1. there is no dark area and No light leakage for digital flex silicone Neon LED tube series,
2. it can be folded and bent without problem.
3. Easy to be installed and transported .
4. applied well in all kinds of High-end venue and outdoor use (Ip rate: 67)
5. take the advantage of unique optical technique and special housing design ,it increases the intensity and uniformity of light greatly ,anti UV silicone coating ,

no color change outside within 3 years warranty
6. all monochrome series belong to low voltage flex led strip,voltage varies from DC5V-DC24v,

can be cut at 1led,3led,6leds to make a individual part.
7. various designed end caps for different project
8. Packing : Static bag seal packing(locking static bag + moisture-proof desiccant)
9. 5m/reel(length can be customized as the customer requirements)

Click here to download all tybes of silicone neon tube sizefor led strip please .
