Dc24V 12mm width Flexible dmx512 ucs512H4L RGB digital Pixel led strip 96led 16pixels per meter

dmx512rgbwpixelledstrip
Products Inquiry

Product Details

Dc24V 12mm width Flexible dmx512 UCS512H4L or TM512AC  RGB digital Pixel led strip 96led 16pixels per meter



Our DMX  flexible led strip is super strong dmx signal strip with A,B signal parallel signal transfer. 5 cables ( PI/PO address writing wire, A(Dmx+),B(Dmx-),GND),

and  DC24V,the MAX485 is inside the DMX512 IC ,It can be cut ,can be parallel and series connection .

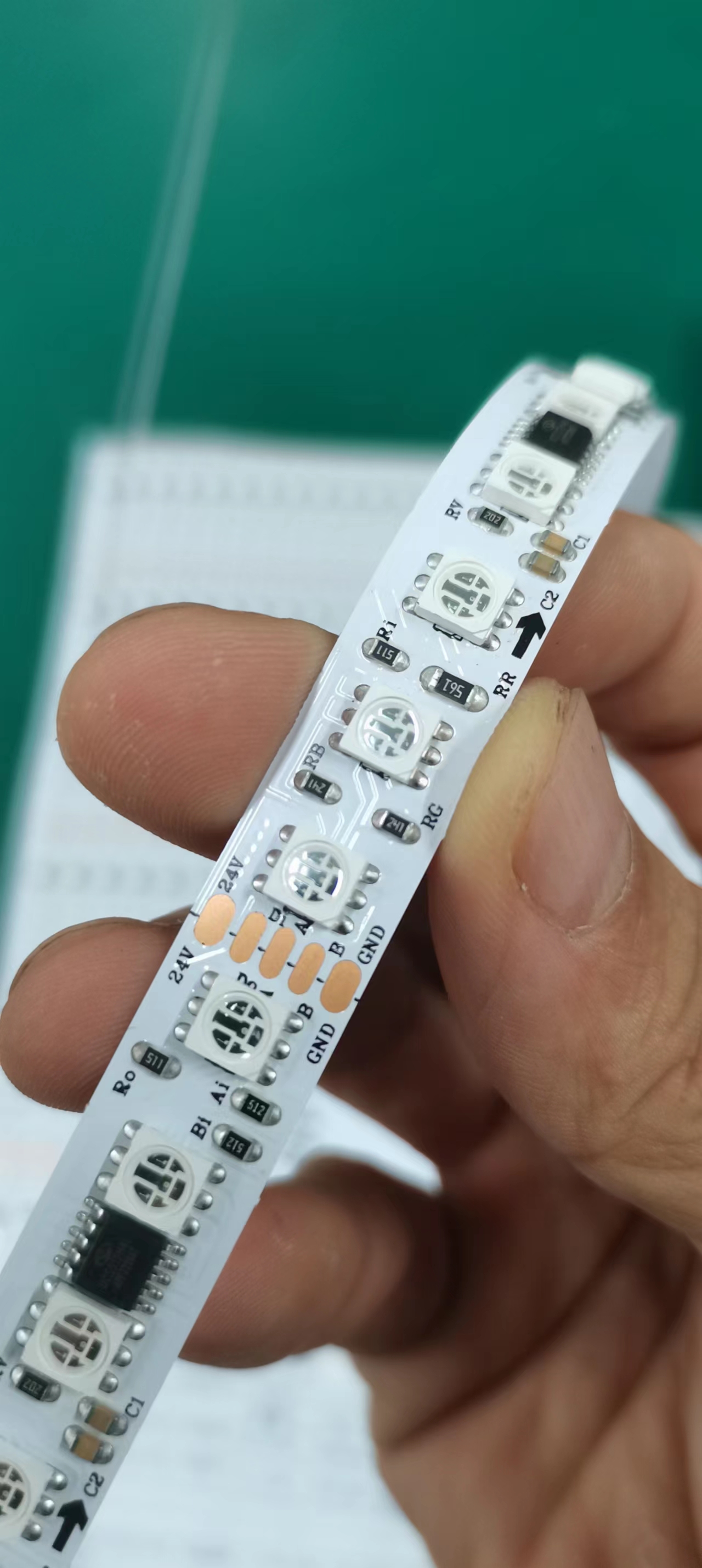

96led dmx512 led strip.jpg

dmx512 rgbw led strip 96led (7).jpgProduct details

Product NameRL-STR-dmx512-5050RGBW-96-24V-12mm
LED Qty96leds/m
DMX512 Qty16pcs with 24V
DMX channel48 channels with 24V
PCB Width12mm wide
VoltageDC24V
Watt19.2W
PCB ColorWhite PCB Black PCB
IP RatingIP20/IP65/IP67/IP68
ControllerDMX512 Art-Net/DVI/DMX Controller
IC chipsetUCS512H4L/TM512 AC optional


key specification

1. This Dc24V  flex dmx digital led strip 60leds/M ,that different with normal SPI led pixel strips. DMX512 led strips protocl is DMX512 that signal is parallel not series.

2. Its advantage is parallel DMX512 signal could avoid LEDs color influenced by the failure of one light in serial connection.

2. Entire DMX RGB digital led strip has 16 pixels with 24V ; 96 RGB leds in a meter with 12mm width pcb board.

3. Communication between DMX512 RGB led digital tapes are synchronized perfectly under support of Artnet / DMX512 led controllers.

4. 24V  96 leds DMX RGB LED Pixel Digital strip need to write DMX address code via DMX address coder / controller.

5. Vivid lighting performance operated by Madrix software, Artnet / DMX512 led controllers.

6. 24V  96 leds DMX RGB LED Pixel Digital ribbon is flexible , bright, durable and easy for installation.

For bare board strip, you can use the 3M adhensive tape on back; For waterproof silicone tube strip,

there shipped with flexible silicon brackets and screws, the brackets fit over the waterproof sheath, it would be used to mount the led strips very well.

Advantages:

  • 2unce PCB board with double cooper layer(hongqi brand 35um copper )

  • doublesides membrane cover the pcb board. make sure the copper no drop from the pcb board

  •  It comes in 1 meters per reel with 5Pin female/male JST SM connector on both end and separated Power / Ground Wires . Customized length is workable .

  • Flexible PCB material .every 6LED cab be cut with 24V;

  • 96LEDs/M with 24V  .  don’t over 25V , otherwise you will destroy the entire strip ..

  • warranty: 3years

  • Original  TM512 AC  with standard dmx512 signal ,,

Installing : screw+silicon clipand 3M adhesive on back side for sticky

Packaging

5m/roll 60rolls/ carton carton size: 48cm*48cm*28cm  GW: 12.5kg with nonwaterproof Ip20

Waterproof IP grade

IP20 Non-waterproof with 3M sticker on the back, Size:5000*12*2.5mm

IP65 waterproof is silicone gel or epoxy on the surface,Size:5000*12*3mm

IP67: silicone tube,Size:5000*14*4mm

IP68: silcone gel(or epoxy) inside silicone tube.Size:5000*14*4mm

Product details with nonwaterproof






white color optional!

There is other 96led dmx512 led strip optional!

96led dmx512 led strip.jpg


RGB Type optional

RGBW Type

Dual white Type



all dmx512 led strip on big promotion n0w!
